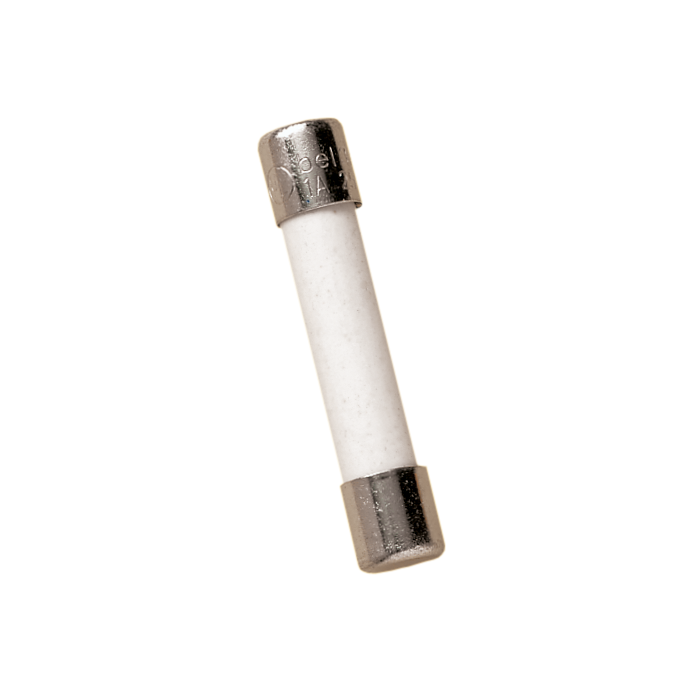

Mersen GAB1-1/2 Fuse, Midget, Fast Acting, Ceramic, PC Mount, 1.5A

Product Description

The MERSEN GAB1-1/2 is a fast-acting midget fuse with a ceramic body. This fuse provides reliable protection for electrical circuits, with a voltage rating up to 250V. It has a compact cylindrical body, and is suitable for various safety needs.

• Fast Acting
• Ceramic Body Fuse
• UL Listed and CSA Certified

Product Highlights

The MERSEN GAB1-1/2 fuse is a fast-acting fuse with a ceramic body, ideal for protecting electrical circuits.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: GAB1-1/2

Technical Specifications

• Brand: Mersen
• Class: Supplemental
• Current Rating: 1.5 A
• Manufacturer Part Number: GAB1-1/2
• Series: GAB Series
• Speed: Fast Acting sec
• Voltage Rating: 250 V
• Body Material: Ceramic
• Fuse Speed: Fast Acting
• Approvals: UL Listed and CSA Certified
• Interrupting Rating: 35 AIC @ 250VAC
• Application: Electronic Circuits Applications
• Mounting Type: Requires Holder
• Terminal Type: Ferrule
• Fuse Type: Cartridge, Ceramic
• Voltage Rating - AC: 250 V
• Part Status: Obsolete
• Package / Case: 3AB, 3AG, 1/4" x 1-1/4"
