MERSEN Mersen ATQR2-1/4 Fuse ATQR - Class CC - Time-Delay 600VAC 300VDC 2.25A
MERSEN Mersen ATQR2-1/4 Fuse ATQR - Class CC - Time-Delay 600VAC 300VDC 2.25A

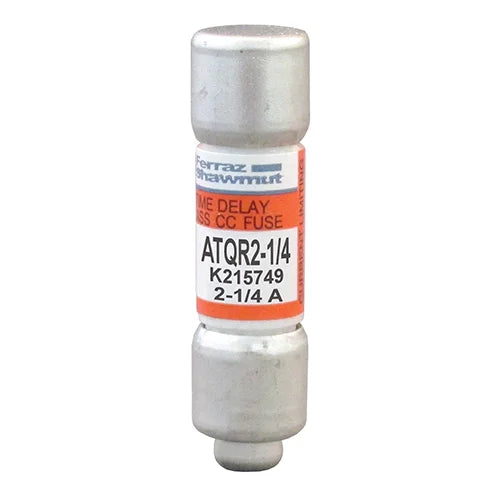

Mersen ATQR2-1/4 Fuse ATQR - Class CC - Time-Delay 600VAC 300VDC 2.25A

Brand: MERSEN
SKU: ATQR2-1/4
Availability: Out Of Stock
$83.53
$83.53
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The MERSEN ATQR2-1/4 is a small-dimension fuse with time-delay characteristics, ideally suited for high inrush currents of control transformers and solenoids. Mersen's Amp-Trap 2000 ATQR fuses provide superior protection for branch circuits of electrical distribution systems. It has a rated voltage of 600VAC and 300VDC and an ampere rating of 2.25A.

  • Time-delay characteristics suited for high inrush currents
  • Superior protection for branch circuits
  • Amp-Trap 2000

Product Highlights

The MERSEN ATQR2-1/4 fuse provides time-delay and superior protection for branch circuits with high inrush currents.

Product Information

Standard Information

  • Brand: MERSEN
  • Manufacturer Part Number: ATQR2-1/4
Technical Specifications
Item number
ATQR2-1/4
Description
Fuse ATQR - Class CC - Time-Delay 600VAC 300VDC 2.25A Ferrule Amp-Trap 2000®
EAN/UPC Code
782001906504
Rated voltage AC UL
600 V
Rated voltage DC UL
300 V
Frequency (Hz)
50/60 Hz
Ampere Rating
2.25 A
AC or DC
AC/DC
Fuse Class
Class CC
Speed/Characteristic
Time Delay
Mounting
Clip
AC Max I.R./Breaking Capacity: I1
200 kA
Connection/Terminal Material
Tin-Plated Copper
Connection/Terminal Type
Ferrule
Product Diameter
0.41 in
Product Length
1.5 in
Body/Insulating Material
GMG
Brand
Mersen
Current Rating
2.25 A
Manufacturer Part Number
ATQR2-1/4
Alternate Mfr Part Number
K215749
Product group
Low Voltage UL/CSA Fuses
Speed
Time Delay sec
MERSEN Mersen ATQR2-1/4 Fuse ATQR - Class CC - Time-Delay 600VAC 300VDC 2.25A

MERSEN

Mersen ATQR2-1/4 Fuse ATQR - Class CC - Time-Delay 600VAC 300VDC 2.25A

$83.53
MERSEN Mersen ATQR2-1/4 Fuse ATQR - Class CC - Time-Delay 600VAC 300VDC 2.25A

MERSEN

Mersen ATQR2-1/4 Fuse ATQR - Class CC - Time-Delay 600VAC 300VDC 2.25A

$83.53
