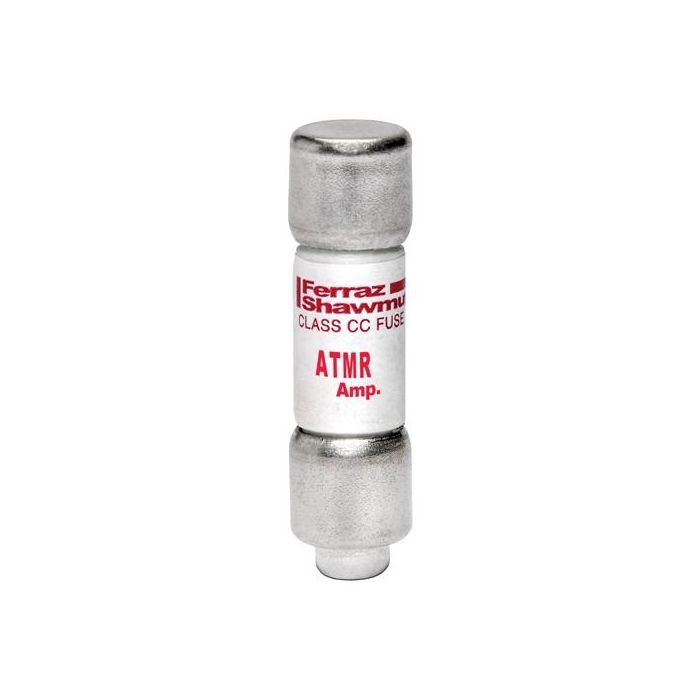

Mersen ATMR3/4 Fuse ATMR 0.75A Class CC

Brand: MERSEN
SKU: ATMR3/4
Availability: In Stock

Ships same day if ordered by 12 pm
$66.99
$66.99
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The MERSEN ATMR3/4 is a fast-acting Amp-Trap ATMR fuse with the smallest dimensions of 600V fuses suitable for branch-circuit protection. A popular choice for economical protection of control circuits and control circuit transformers where available short circuit currents exceed 10,000 amperes. These fast-acting fuses give current-limiting protection to general circuits.

  • Fast-Acting
  • Current-Limiting
  • Rejection style design prevents replacement errors when used with recommended fuse blocks

Product Highlights

The MERSEN ATMR3/4 fuse provides reliable, fast-acting protection for control circuits and transformers, preventing replacement errors with its rejection style design.

Product Information

Standard Information

  • Brand: MERSEN
  • Manufacturer Part Number: ATMR3/4
  • Country of Origin: China
Technical Specifications
Item number
ATMR3/4
EAN/UPC Code
782001903817
Rated voltage AC UL
600 V
Rated voltage DC UL
600 V
Frequency
50/60 Hz
Ampere Rating
0.75 A
ROHS Compliant
Yes
AC or DC
AC/DC
Fuse Class
Class CC
Speed/Characteristic
Fast-Acting
Mounting Type
Clip
AC Max I.R./Breaking Capacity: I1
200 kA
Connection/Terminal Material
Tin-Plated Copper
Connection/Terminal Type
Ferrule
Product Diameter
0.41 in
Product Length
1.5 in
Product group
Low Voltage UL/CSA Fuses
Body/Insulating Material
GMG
Product Weight
0.017 lb
DC Voltage Rating
600V DC
AC Interrupting Rating
200,000 AIC
DC Interrupting Rating
100,000 AIC
Physical Size
13/32" x 1 1/2"
Application
Control Circuits Lighting General Loads
Body Material
Melamine
Breaking Capacity
200 kA
Contact Material
Tin-plated Copper
Current Rating
0.75 A
For Use With
Fuses
Manufacturer Part Number
ATMR3/4
Primary Type
Fuse
Series
Amp-Trap ATMR Series
Speed
Fast Acting sec
Standards
UL Listed to Standard 248-4, File E2137 DC Listed to UL Standard 248 CSA Certified to Standard C22.2, No. 248.4 RoHS Compliant
Termination
Cartridge
Type
Fuse
Voltage Rating
600 V
Interrupt Rating
100kA at 600V DC, 200kA at 600V AC
Body Style
Cylindrical
Equivalent Brand and Series
Bussmann KTK-R, Littelfuse KLKR, Mersen ATMR
Equivalent Series
ATMR, KLKR, KTK-R
Fits Fuse Block Style
Rejection
Compatible Fuse Block Series
USCC, USFMCC
Item
UL Class Fuse
Rejection / Nonrejection
Rejection
Element
Single
Weight
0.02 lb
Fuse Speed
Fast Acting
Green Environmental Attribute
RoHS 2011/65/EU Compliant
APPROVALS & STANDARDS
UL Listed to Standard 248-4 File E2137; CSA Certified to Standard C22.2 No. 248.4; DC listed to UL Standard 248
Fuse Holder Code
D/W
Short Description
Fuse Amp-Trap 600V 0.75A Fast-Acting Class CC ATMR Series
In Line Fuseholder
D/W
Current
750 mA
Interrupt Rating - AC
200 kA
Interrupt Rating - DC
100 kA
Alternate Mfr Part Number
Z214727
Amps
0.75A
AC Voltage Rating
600V AC
Visual Indication
Non-Indicating
Fuse Size (Lg x Dia)
1 1/2 in x 13/32 in
Length (Straight Wireway)
1 1/2 in
Overall Diameter
13/32 in
Overall Length
1 1/2 in
