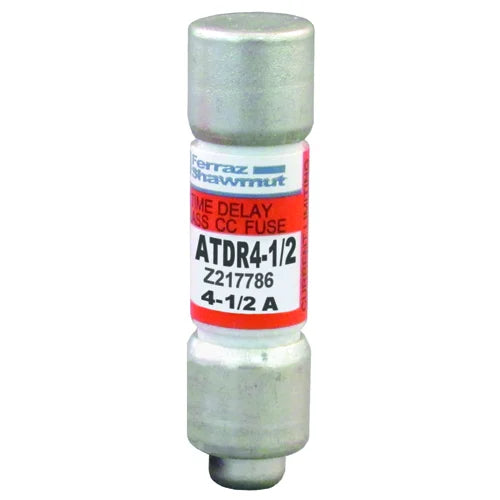

Mersen ATDR4-1/2 Fuse 4.5A

Brand: MERSEN
SKU: ATDR4-1/2
Availability: Out Of Stock
$72.42
$72.42
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The MERSEN ATDR4-1/2 is a Class CC, time-delay fuse. Amp-Trap 2000 time-delay ATDR small-dimension fuses provide IEC Type 2 "no damage" protection to sensitive branch circuit components and small motors, minimizing fault-related damage. ATDR Class CC fuses deliver the best time-delay characteristics with excellent cycling ability for small motor loads.

  • Provides IEC Type 2 "no damage" protection
  • Minimizes the risk of fault-related damage
  • Best time-delay characteristics in its class

Product Highlights

Ideal for small motors, contactors, lighting, heating and branch circuit protection.

Product Information

Standard Information

  • Brand: MERSEN
  • Manufacturer Part Number: ATDR4-1/2
Technical Specifications
Item number
ATDR4-1/2
Description
Fuse ATDR - Class CC - Time-Delay 600VAC 300VDC 4.5A Ferrule Amp-Trap 2000
EAN/UPC Code
782001908560
Rated voltage AC UL
600 V
Rated voltage DC UL
300 V
Frequency (Hz)
50/60 Hz
Ampere Rating
4.5 A
AC or DC
AC/DC
Fuse Class
Class CC
Speed/Characteristic
Time Delay
Mounting
Clip
AC Max I.R./Breaking Capacity: I1
200 kA
Connection/Terminal Material
Tin-Plated Copper
Connection/Terminal Type
Ferrule
Product Diameter
0.41 in
Product Length
1.5 in
Product group
Low Voltage UL/CSA Fuses
Body/Insulating Material
GMG
DC Voltage Rating
300
AC Interrupting Rating
200,000 AIC
DC Interrupting Rating
100,000 AIC
Physical Size
0.41" x 1 1/2"
Voltage rating
600 Vac, 300 Vdc
Interrupt rating
200 kA
Speed
Time Delay
Class
Class CC
Shape
Cartridge Fuses
Approvals
UL, CSA
Substitute parts
Bussmann LP-CC, , Littelfuse CCMR
Dimensions
0.41" Dia x 1.5" L (10.41x38.1mm)
Item weight
0.32 oz
Alternate Mfr Part Number
Z217786
Application
Small Motors Contactors Lighting Heaters General Loads
Body Material
Glass
Brand
Mersen
Breaking Capacity
200 kA
Contact Material
Tin-plated Copper
Current Rating
4.5 A
For Use With
Fuses
Manufacturer Part Number
ATDR4-1/2
Primary Type
Single Use Fuses
Series
Amp-Trap 2000 SmartSpot Series
Standards
UL Listed to Standard 248-4, File E2137 DC Listed to UL Standard 248 CSA Certified to Standard C22.2, No. 248.4
Termination
Cartridge
Alternate Part Number
Reference No. Z217786
Amp Rating
4.5
Poles
See Spec or N/A

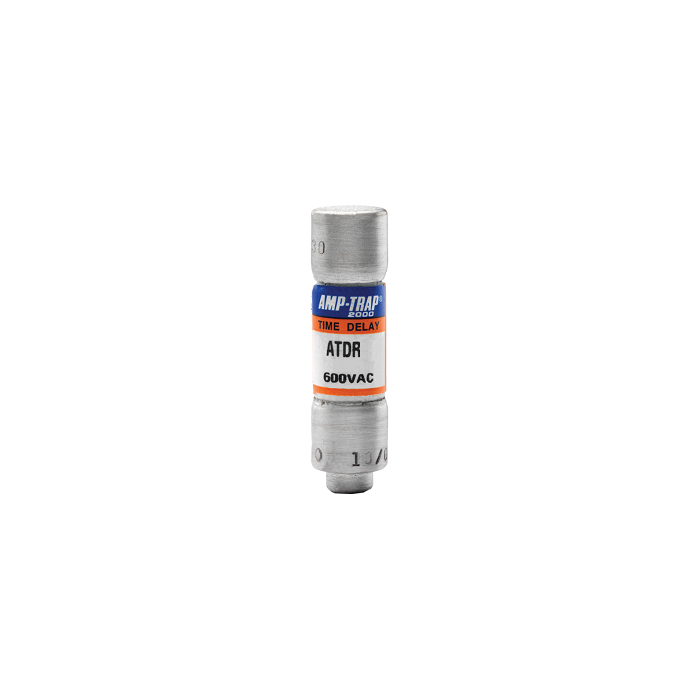

ATDR Series
ATDR Series
Options
No Special Options
ROHS Compliant
Yes
Diameter
0.41 in
Length
1.5 in
Material
GMG
Mounting Type
Clip
Terminal Type
Ferrule
Type
Time Delay
Voltage Rating
600 VAC
Standard & Approvals
UL 248-4, CSA C22.2, No. 248.4
Amperage Rating
4.5 A
Body Size
13/32 in Dia x 1-1/2 in L
Body Style
Cylindrical
Element
Dual
