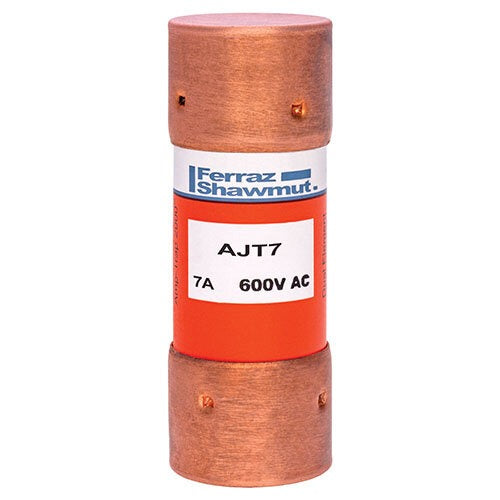

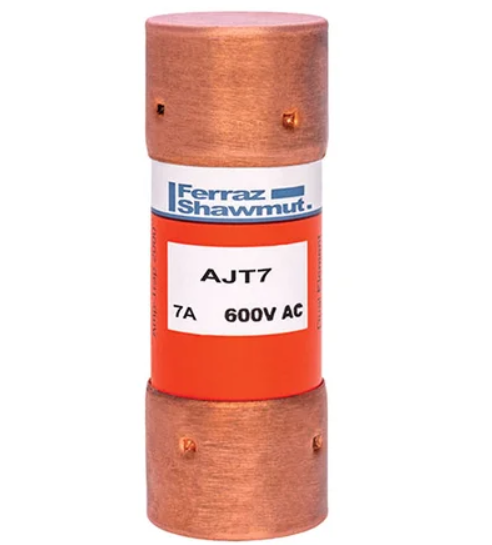

Mersen AJT7 Class J time-delay fuse 7A (10 Pack) AJT7

Product Description

The Mersen AJT7 is a Class J time-delay fuse rated 7 A and specified for 600 VAC and 400 VDC operation. It uses Amp-Trap 2000 technology to provide IEC Type 2 No Damage protection and offers time-delay characteristics to absorb motor and transformer inrush current while providing current-limiting performance. The fuse includes ferrule terminals with tin-plated copper connections and is available with an optional SmartSpot visual open-fuse indicator.

• Time-delay characteristic suitable for motor and transformer inrush and current-limiting protection
• Rated 7 A, 600 V AC / 400 V DC with 200 kA AC interrupting capacity
• Ferrule terminals (tin-plated copper), clip mounting, compact size requiring about half the space of 600 V Class RK fuses

Product Highlights

Class J 7 A time-delay fuse with Amp-Trap 2000 technology and IEC Type 2 No Damage protection; optional SmartSpot indicator; compact ferrule-design construction.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: AJT7
• Country of Origin: China
