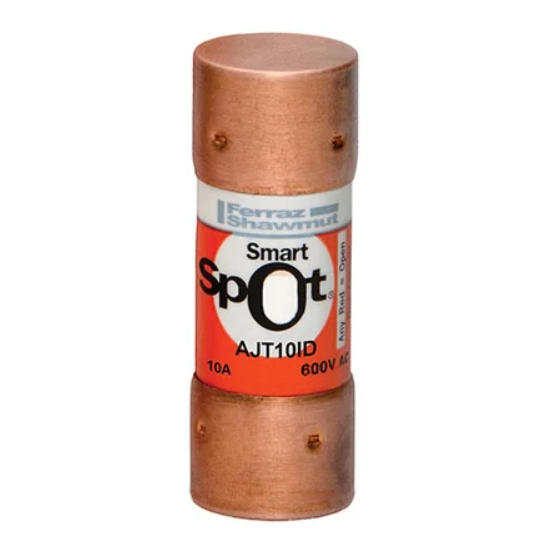

Mersen AJT10ID Class J Time-Delay Fuse 10A (10 Pack)

Product Description

The Mersen AJT10ID is an Amp-Trap 2000 Class J time-delay fuse rated 10 A, 600 VAC and 400 VDC, with a ferrule connection and SmartSpot visual open-fuse indicator. It provides IEC Type 2 No Damage protection and current-limiting performance with a 200 kA AC interrupting rating, while occupying roughly half the mounting space of 600 VAC Class RK fuses; the time-delay characteristic accommodates motor and transformer inrush.

• SmartSpot visual open-fuse indicator for rapid verification of fuse status
• Time-delay Class J design for motor and transformer inrush and IEC Type 2 No Damage protection
• Ferrule tin-plated copper terminals, 200 kA AC interrupting rating, compact footprint

Product Highlights

Class J Amp-Trap 2000 time-delay fuse, 10 A, 600 VAC/400 VDC, SmartSpot indicator, ferrule terminals, 200 kA AC interrupting rating

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: AJT10ID
