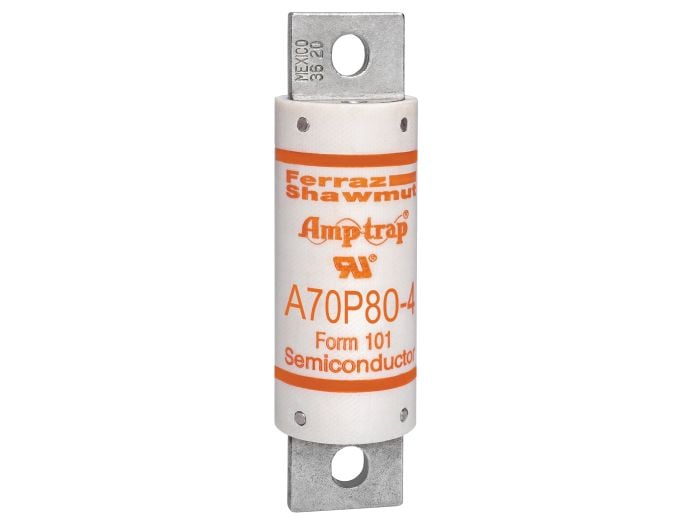

Mersen A70P80-4 Semiconductor Protection Fuse Fast Acting 80A

Product Description

The MERSEN A70P80-4 is an Amp-trap Form 101 semiconductor protection fuse designed for applications needing lower I2t and high reliability. Suitable for higher voltage AC and DC drives, UPS systems, and reduced voltage motor starters. It is available in a wide range of ratings.

• Low I2t minimizes damage to protected components on short circuit
• Controlled arc voltage reduces stress to circuit components during fuse clearing
• Choice of mounting types helps in equipment design

Product Highlights

Semiconductor protection fuse with fast acting speed, a voltage rating of 700V, and a current rating of 80A. Offers reliable protection for sensitive electronic components.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: A70P80-4
• Country of Origin: US

Technical Specifications

• Alternate Mfr Part Number: V219990
• Application: Protection of 700V or less DC drives, UPS, inverters, reduced voltage starters, etc.
• Body Material: Glass
• Brand: Mersen
• Contact Material: Tin-plated Brass
• Current Rating: 80 A
• Manufacturer Part Number: A70P80-4
• Numeric ID: 2510416
• Primary Type: Single Use Fuses
• Series: Amp-Trap A70P Series
• Speed: Fast Acting sec
• Standards: UL Recognized Component AC: Guide No. JFHR2 DC: Tested to UL Standard 198L parameters Some Ratings RoHS Compliant
• Termination: Bolted
• Type: Cylindrical Fuses
• Voltage Rating: 700 V
• Fuse Type: Semiconductor
• AC Voltage: 700 VAC
• DC Voltage: 650 VDC
• Characteristic: Fast Acting
• Interrupt Rating: 100 kA @ 650 VAC, 100 kA @ 700 VAC
• Trip Indicator: No
• Alarm Contacts: No
