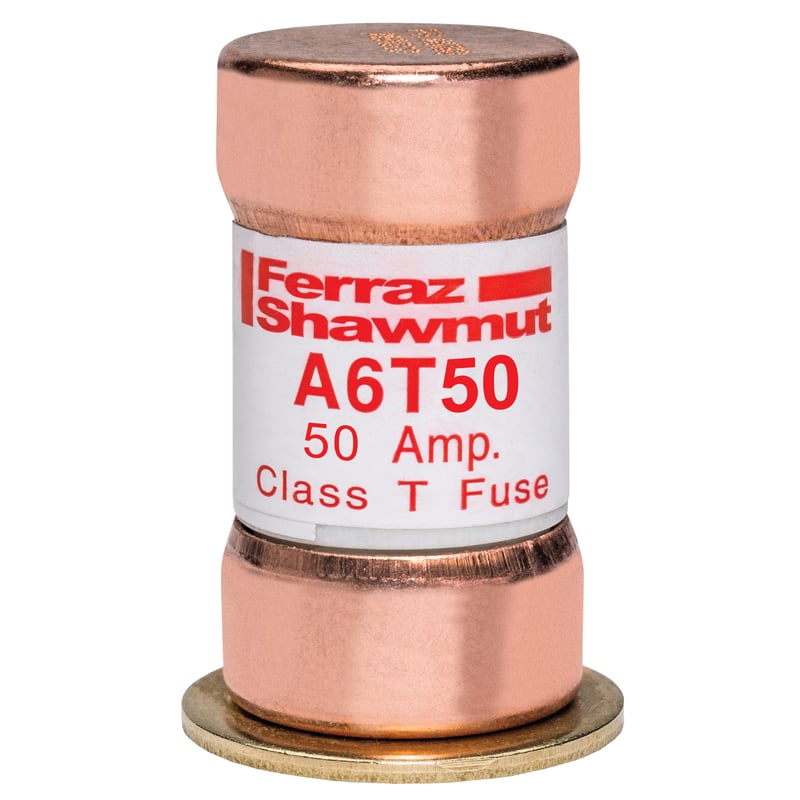

Mersen A6T50 Fer A6T Class T Fuse 50 Amp

Product Description

The MERSEN A6T50 is a fast-acting A6T Class T fuse that combines high current limitation with a small physical size. Its unique dimensions prevent the substitution of other fuses with lower voltage or current limiting capabilities. It has catalog numbers stamped into the blades for permanent identification and a glass melamine body for dimensional stability. Suitable for load centers, panelboards, circuit breakers, and metering centers.

• Extremely current limiting for low peak let-thru current
• Unique dimensions prevent replacement by other fuse classes
• Blade stamped catalog numbers for permanent identification

Product Highlights

This MERSEN A6T50 fuse is ideal for applications requiring fast-acting, high current limitation in a compact size. It is UL listed and CSA certified.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: A6T50
• Country of Origin: MX

Technical Specifications

• Class: T
• Series: A6T
• Element: Single
• Material: Fiber
• Body Size: 0.81 in Dia x 1.57 in L
• Body Type: Cylindrical
• Mounting Type: Clip
• Terminal Type: Ferrule
• Voltage Rating: 600 VAC/300 VDC
• Amperage Rating: 50 A
• Interrupt Rating: 200 kA
• Rejection/Non-Rejection: Non-Rejection
• Indicating/Non-Indicating: Non-Indicating
• Brand: Mersen
• Sub Brand: Amp-Trap®
• Application: Load centers Panelboards Switchboards Circuit breakers Metering centers
• Connection: Ferrule
• Special Features: Extremely current-limiting for low peak let-thru current Unique dimensions prevent replacement by other fuse classes Blade-stamped catalog numbers for permanent identification Small physical size for greater design flexibility
• Standard: UL listed to standard 248-15 File E2137 CSA certified to standard C22.2 no. 248.15 DC listed to UL standard 248
• Fuse Type: Fast Acting
• Voltage Rating AC: 600VAC
• Voltage Rating DC: 300VDC
• Breaking Capacity AC: 200kA
• Breaking Capacity DC: 100kA
• Fuse Speed: Fast Acting
