Mersen A6T30 Fuse 30A (6Pack)

Product Description

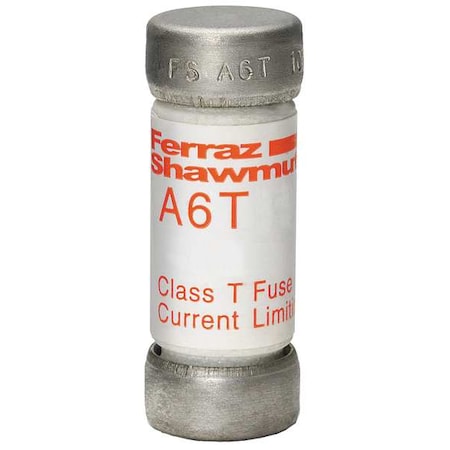

The MERSEN A6T30 fuse (6Pack) is a very fast-acting fuse. This Class T fuse has a cylindrical body style and is nonindicating. It has an interrupt rating of 100kA at 300V DC and 200kA at 600V AC. The fuse is UL/CSA certified and RoHS 2011/65/EU compliant.

• 30 A
• 600V AC and 300V DC
• Very Fast Acting

Product Highlights

The MERSEN A6T30 fuse is a very fast-acting fuse with a cylindrical body style, suitable for various applications requiring reliable overcurrent protection.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: A6T30
• Country of Origin: Mexico

Technical Specifications

• Product Type: FUSE
• Manufacturer: MERSEN
• Brand: Mersen
• Product Group: BISS
• Model / MPN: A6T30
• Number of Items: 6.0
• Amps [Specifications]: 30 A
• Item [Specifications]: Fuse
• Class [Specifications]: T
• Speed [Specifications]: Very Fast Acting
• Length [Specifications]: 1-1/2"
• Series [Specifications]: A6T
• Element [Specifications]: Single
• Diameter [Specifications]: 9/16"
• Mounting [Specifications]: Clip
• Fuse Amps [Specifications]: 30A
• Standards [Specifications]: UL/CSA
• Body Style [Specifications]: Cylindrical
• Body Material [Specifications]: Glass/Melamine
• Fuse Holder Code [Specifications]: BF
• Interrupt Rating [Specifications]: 100kA at 300V DC, 200kA at 600V AC
• AC Voltage Rating [Specifications]: 600V AC
• DC Voltage Rating [Specifications]: 300V DC
• Equivalent Series [Specifications]: A6T, JJS, JLLS
• Visual Indication [Specifications]: Nonindicating
• Connection Material [Specifications]: Copper
• Fuse Voltage Rating [Specifications]: 600VAC/300VDC
• Fits Fuse Block Style [Specifications]: Nonrejection
• Functionally Equal To [Specifications]: Bussmann JJS, Littelfuse JLLS
• Fuse Interrupt Rating [Specifications]: 200kA at 600VAC, 100kA at 300VDC
• Rejection / Nonrejection [Specifications]: Nonrejection
• Indicating / Nonindicating [Specifications]: Nonindicating
• Equivalent Brand and Series [Specifications]: Bussmann JJS, Littelfuse JLLS, Mersen A6T
• Compatible Fuse Block Series [Specifications]: 6TFB, GFB
• Green Environmental Attribute [Specifications]: RoHS 2011/65/EU Compliant
