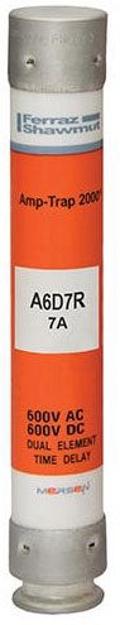

Mersen A6D7R FER Current Limiting Low Voltage 600 VAC Power Fuse

Product Description

The Mersen AMP-TRAP 2000 A6D7R is a current limiting low voltage power fuse designed for North American applications. This fuse is rated at 7 amps and operates at 600 VAC with a 200 kA interrupt rating. It provides time delay characteristics which help manage motor inrush currents effectively.

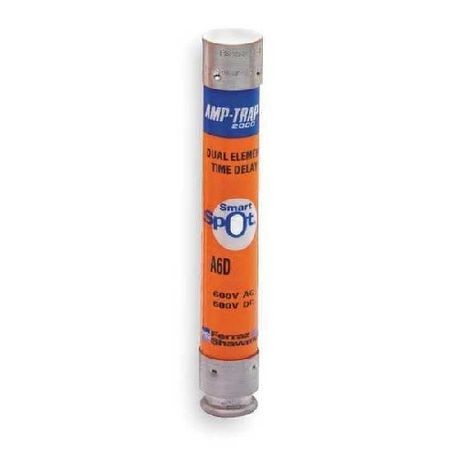

• Solid state SmartSpot indicator for visual confirmation
• Rejection style design prevents incorrect replacements
• Time delay feature for handling inrush currents without nuisance blowing

Product Highlights

This fuse is ideal for use in motors, safety switches, transformers, and control panels. It is built to ensure maximum protection under fault conditions.

Product Information

Standard Information

• Brand: Mersen
• MPN: A6D7R

Technical Specifications

• Type: Current Limiting Low Voltage North American Time Delay
• Voltage Rating: 600 VAC
• Amperage Rating: 7 A
• Interrupt Rating: 200 kA
• Body Type: Cylindrical
• Mounting Type: Clip
• Material: Fiberglass
• Body Size: 13/16 in Dia x 5 in L
