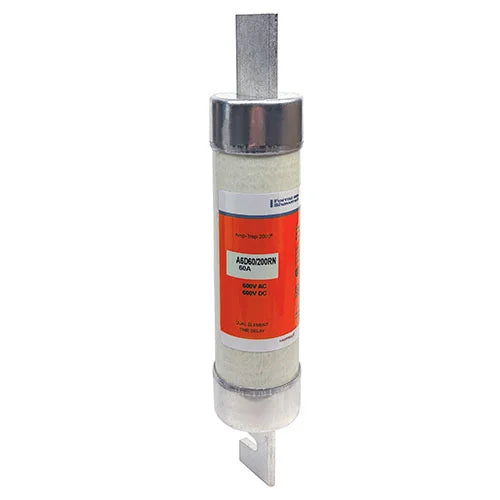

Mersen A6D60/200RN Fuse A6D-R 60A

Product Description

The MERSEN A6D60/200RN Fuse A6D-R is a Class RK1 time-delay fuse designed for reducing current rating without needing a separate fuse reducer. This UL Listed fuse provides protection levels comparable to traditional A6D-R Class RK1 fuses but comes in a larger body. It is rated for 600VAC/VDC and 60A.

• Safe, permanent solution for decreasing your current rating
• Does not require a Fuse Reducer accessory
• UL Listed reduced rating Class RK1 fuses

Product Highlights

The MERSEN A6D60/200RN fuse is ideal for motor starting and transformer inrush currents, preventing nuisance shutdowns. Its rejection-style design ensures correct replacement.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: A6D60/200RN

Technical Specifications

• Item number: A6D60/200RN
• Description: Fuse A6D-R - Reducer Fuses - Class RK1 - Time-Delay 600VAC 600VDC 60A Blade Amp-Trap 2000®
• EAN/UPC Code: 782001511739
• Frequency (Hz): 50/60 Hz
• AC or DC: AC/DC
• Fuse Class: Class RK1
• Speed/Characteristic: Time Delay
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 200 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Blade
• Product Diameter: 1.81 in
• Product Length: 9.63 in
• Product group: Low Voltage UL/CSA Fuses
• Body/Insulating Material: PolyTube
• Product Weight: 1.1 lb
• Amperage Rating: 60 A
• Body Size: 1.81 in Dia x 9.63 in L
• Interrupt Rating: 200 kA
• Material: Polyester
• Series: A6D-R
• Voltage Rating: 600 VAC/VDC
• Amperage Range: 20 to 400 A
• Flammability Rating: 94 V-0
• UL Category Code: JDDZ
• CSA File Number: Class 1422-02 Guide 012636_0
• Max Operating Temp.: 80 °C
• Max Storage Temp.: 80 °C
• Min Storage Temp.: -25 °C
• Harmonized System: 853610
• UL File Number: File E60314
