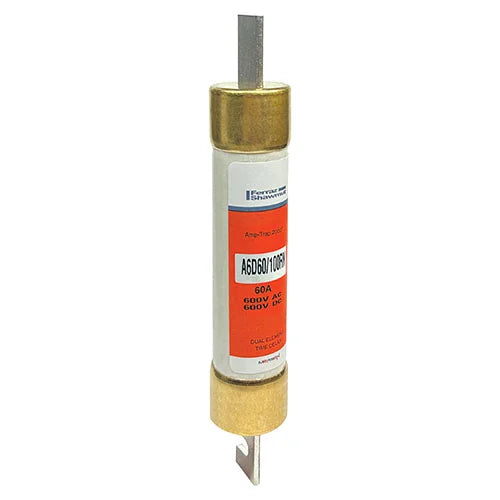

Mersen A6D60/100RN Fuse A6D-R 60A

Product Description

The MERSEN A6D60/100RN is a Fuse A6D-R, a Class RK1 time-delay fuse designed for 600VAC and 600VDC systems with a 60A blade. These reducer fuses offer a solution for decreasing current rating without needing a separate fuse reducer accessory. They provide protection levels like traditional A6D-R Class RK1 fuses but in a larger body.

• Safe, permanent solution for decreasing your current rating without using a Fuse Reducer accessory
• UL Listed reduced rating Class RK1 fuses
• Provides the same trusted protection levels as a traditional A6D-R Class RK1 fuses, but in a larger body.

Product Highlights

Class RK1 time-delay fuse with a 60A rating, designed for 600VAC and 600VDC systems. Offers a solution for decreasing current rating without needing a separate fuse reducer accessory.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: A6D60/100RN

Technical Specifications

• Item number: A6D60/100RN
• Description: Fuse A6D-R - Reducer Fuses - Class RK1 - Time-Delay 600VAC 600VDC 60A Blade Amp-Trap 2000®
• EAN/UPC Code: 0782001511708
• Rated voltage AC UL: 600 V
• Rated voltage DC UL: 600 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 60 A
• AC or DC: AC/DC
• Fuse Class: Class RK1
• Speed/Characteristic: Time Delay
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 200 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Blade
• Product Diameter: 1.31 in
• Product Length: 7.88 in
• Product group: Low Voltage UL/CSA Fuses
• Body/Insulating Material: PolyTube
• Flammability Rating: 94 V-0
• UL Category Code: JDDZ
• CSA File Number: Class 1422-02 Guide 012636_0
• Max Operating Temp.: 80 °C
• Max Storage Temp.: 80 °C
• Min Storage Temp.: -25 °C
• Harmonized System: 853610
• UL File Number: File E60314
