Mersen A6D25R 25 Amp, 600 Volt, Class RK1 Time Delay Fuse

Product Description

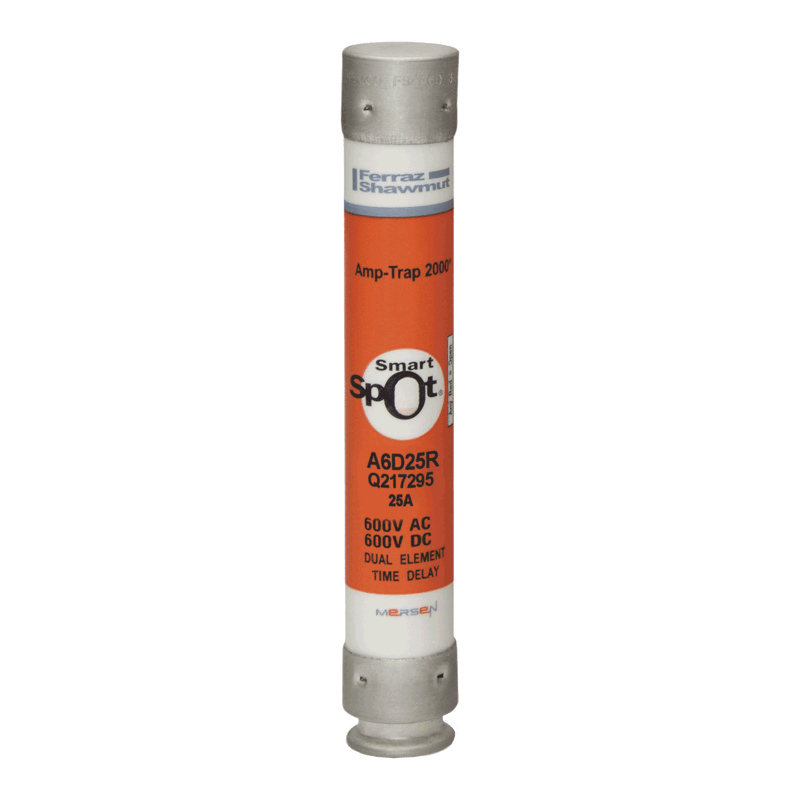

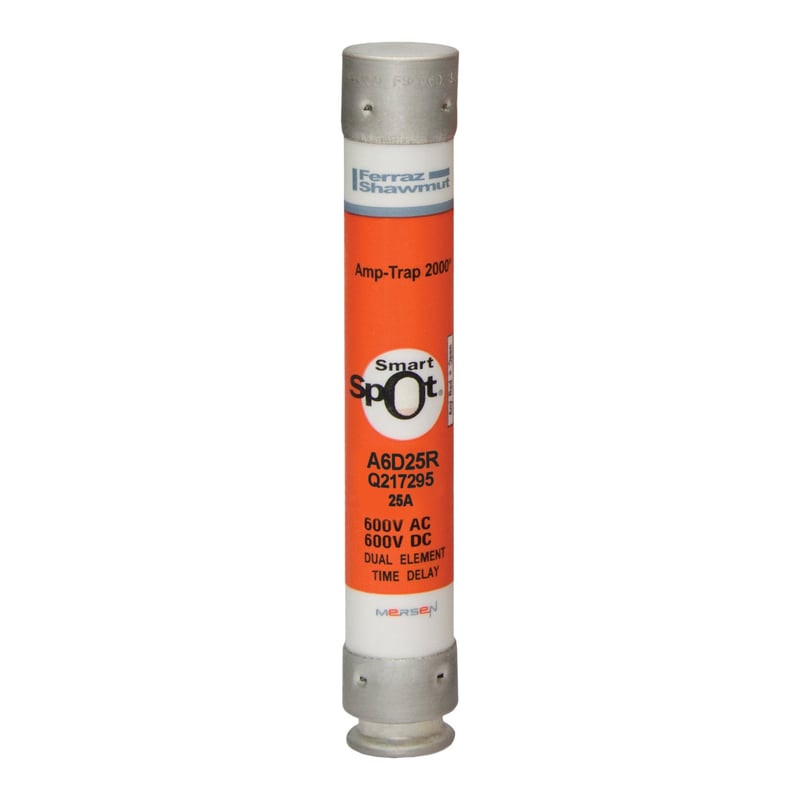

The Mersen A6D25R is a time delay fuse rated for twenty-five amps and six hundred volts. It is designed for use in various applications, including motors, safety switches, and control panels. This fuse provides reliable protection against overcurrents, ensuring the safety and functionality of connected equipment. The unique SmartSpot feature offers a visual indication when the fuse has blown, making maintenance easier.

• Rated for 25 Amperes at 600 Volts
• Class RK1 design for general circuit protection
• Time-delay functionality to manage inrush currents

Product Highlights

This fuse supports a wide range of applications, reducing downtime and enhancing system reliability.

Product Information

Standard Information

• Brand: Mersen
• Fuse Type: Time Delay

Technical Specifications

• Voltage Rating: 600 V
• Amperage Rating: 25 A
• Interrupt Rating: 200 kA
• Sub Brand: Amp-Trap 2000
• Box Quantity: 10
• Connection: Ferrule
• Mounting: Clip
• Standard Compliance: UL 248-12
