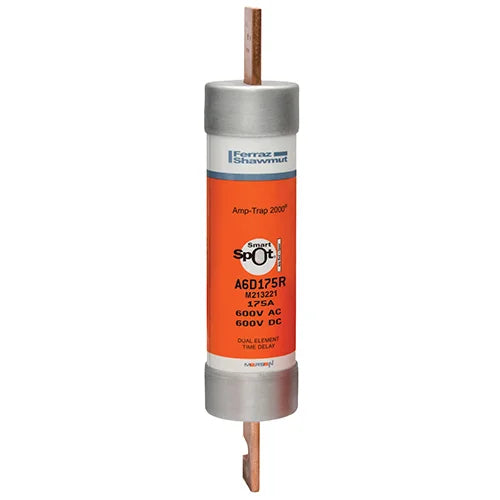

Mersen A6D175R Fuse A6D-R 175A

Product Description

The Mersen A6D175R is a Class RK1 time-delay fuse with a 600VAC/600VDC voltage rating and a 175A amperage rating. It is designed for use in motors, safety switches, transformers, branch circuit protection, disconnects, control panels and all general-purpose circuits. The fuse features a SmartSpot visual blown fuse indicator.

• Features a non-indicating or solid state SmartSpot visual blown fuse indicator.
• Time-delay functionality allows for motor starting and transformer inrush currents without nuisance opening.
• Extremely current-limiting for low peak let-thru current.

Product Highlights

This Mersen A6D175R fuse provides time-delay for motor in-rush currents and can replace older 600V Class H, K or RK5 fuses.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: A6D175R
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: A6D175R
• Manufacturer: Mersen
• Brand: Mersen
• Sub Brand: Amp-Trap 2000®
• Country of Origin: Mexico
• Made in USA: No
• Amperage Rating: 175 A
• Application: Motors, Safety Switches, Transformers, Branch circuit protection, Disconnects, Control Panels and All General Purpose Circuits
• Connection: Blade
• Interrupt Rating: 200 kA
• Mounting: Clip
• Special Features: Non-indicating or Solid state SmartSpot visual blown fuse indicator Time-delay for motor starting and transformer inrush currents without nuisance opening 600VAC & 600VDC dual rated 300kA interrupting rating - self-certified, UL witnessed tests Extremely current-limiting for low peak let-thru current Recommended for Arc Flash energy reduction Easy 2-to-1 selectivity for prevention of nuisance shut downs and “black outs” Rejection-style design prevents replacement errors (when used with recommended fuse blocks) High-visibility orange label gives instant brand recognition Reduced inventory by taking the place of class RK5, K, and H fuses Metal-embossed date and catalog number for easier traceability and lasting identification Fiberglass body provides dimensional stability in harsh industrial settings
• Standard & Approvals: UL 248-12 File E2137, DC UL 248, CSA C22.2 No. 248.12, RoHS Compliant
• UPC: 782001992170
• GTIN: 00782001992170
• Item Type: Class RK1
• Type of Indicators: SmartSpot®
• Voltage Rating: 600 V
• Element: Dual
• Class: RK1
• Series: A6D-R
• Body Style: Cylindrical
• Type: Current Limiting
• Terminal Type: Knife Blade
• Material: Polyester
• UNSPSC: 39121606
• Vendor SKU: A6D175R
• Rated voltage AC UL: 600 V
• Rated voltage DC UL: 600 V
• Frequency (Hz): 50/60 Hz
• AC or DC: AC/DC
• Fuse Class: Class RK1
• Speed/Characteristic: Time Delay
• AC Max I.R./Breaking Capacity: I1: 200 kA
• Indication System: Yes
• Indication System Type: SmartSpot®
• Connection/Terminal Material: Tin-Plated Copper
• Product Diameter: 1.81 in
• Product Length: 9.63 in
• Body/Insulating Material: PolyTube
• Mounting Type: Holder
