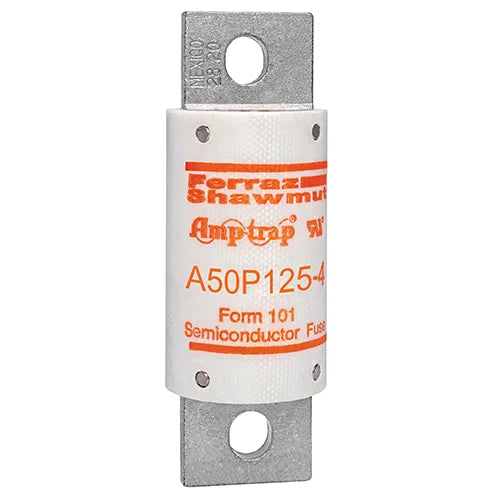

Mersen A50P125-4 High Speed Fuse Amp-Trap A50P 500VAC 450VDC 125A Blade

Product Description

The MERSEN A50P125-4 is a high-speed fuse designed for DC drives and uninterruptible power supplies. It requires better protection and superior reliability. The A50P fuse has a voltage rating of 500VAC, 450VDC and a current rating of 125A. It is typically used for replacement.

• High Speed
• Bolted Mounting
• Tin-Plated Brass Connection/Terminal Material

Product Highlights

The MERSEN A50P125-4 fuse provides reliable protection for DC drives and UPS systems, ensuring minimal damage to protected components during short circuits.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: A50P125-4

Technical Specifications

• Item number: A50P125-4
• Description: High Speed Fuse Amp-Trap ® A50P 500VAC 450VDC 125A Blade
• EAN/UPC Code: 782001946098
• Rated voltage AC UL: 500 V
• Rated voltage DC UL: 450 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 125 A
• AC or DC: AC/DC
• Speed/Characteristic: High Speed
• Mounting: Bolted
• AC Max I.R./Breaking Capacity: I1: 50 kA
• Connection/Terminal Material: Tin-Plated Brass
• Connection/Terminal Type: Blade
• Product Diameter: 1.22 in
• Product Length: 3.63 in
• Product group: High-Speed and Semiconductor protection fuses
• Body/Insulating Material: GMG
• Product Weight: 0.45 lb
• Amperage: 125
• Voltage: 500
• Fuse Class: Semiconductor
• Application: DC Drives and Uninterruptable Power Supplies
• AC Voltage Rating: 500
• DC Voltage Rating: 450
• AC Interrupting Rating: 100,000 AIC
• DC Interrupting Rating: 79,000 AIC
• Brand: Mersen
• Series: A50P
• Mounting Type: Bolt-On
• Approval: UL
• Interrupting Rating: 100kAIC at 500V
• Frame Type: A50P
• Connection Type: Blade
• Standards: RoHS
• Body Material: GMG
• Mpn: A50P125-4
• Upc: 782001946098
• Catalog Number: A50P125-4
• Catalog / Class: Semiconductor
• Speed: Very Fast Acting
• SKU: A50P125-4
• Alternate Mfr Part Number: D225702
• Breaking Capacity: 50 kA
• Current Rating: 125 A
• For Use With: Fuses
• Manufacturer Part Number: A50P125-4
• Primary Type: Fuse
• Type: Current Limiting Fast Acting
• Voltage Rating: 500 VAC
• Standard & Approvals: UL File No. 60314, UL Guide No. JFHR2, RoHS Compliant
• Material: GMG
• Amperage Rating: 125 A
• Body Size: 1.22 in Dia x 3.63 in L
• Body Style: Cylindrical
• Catalog ID: GOUA50P125-4
• Terminal Type: Blade
