Mersen A4J25 600V 25A Class J Fuse

Product Description

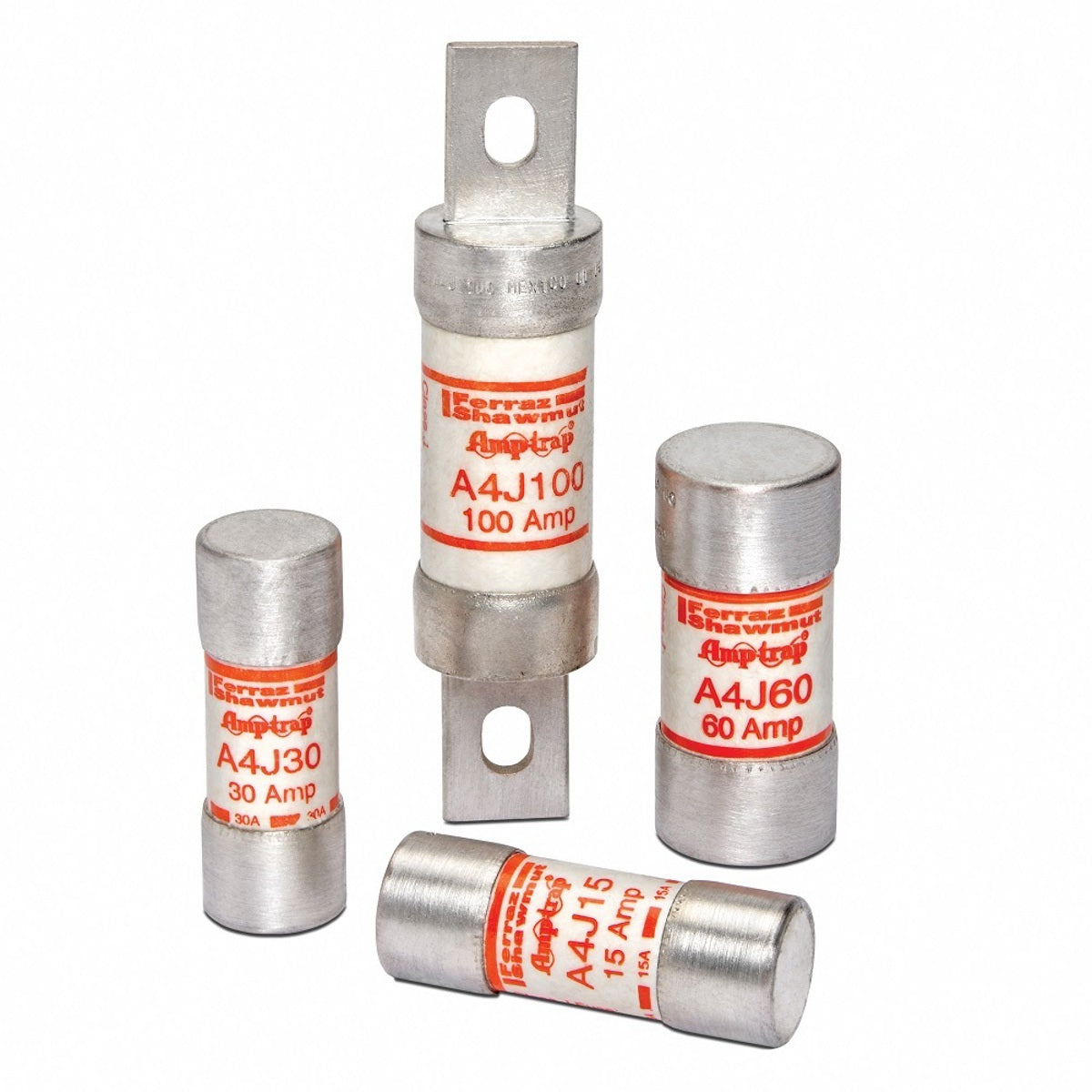

The Mersen A4J25 is a fast-acting fuse designed for low voltage applications up to six hundred volts and twenty-five amperes. This Class J fuse provides reliable protection against overloads and short circuits. It features a cylindrical body and is suitable for various applications, including load centers, panel boards, switchboards, and more.

• Rated for 600V AC and 300V DC
• Fast-acting design for enhanced current limiting
• Unique dimensions prevent replacement with incorrect fuse types

Product Highlights

This fuse offers high current limitation and easy identification through its imprint label, making it ideal for industrial environments.

Product Information

Standard Information

• Manufacturer: Mersen
• Catalog Number: A4J25

Technical Specifications

• Amperage Rating: 25 A
• Voltage Rating: 600 VAC / 300 VDC
• Interrupt Rating: 200 kA
• Mounting Type: Ferrule
• Body Style: Cylindrical
• UL Approval: Standard 248-8
• CSA Approval: Standard C22.2 No. 248.8
• GTIN: 00782001960179
