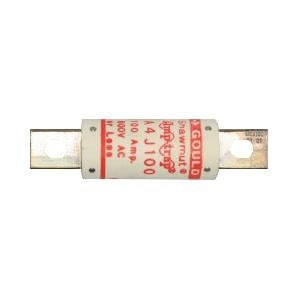

Mersen A4J100 600V 100A Class J Fuse

Product Description

The Mersen A4J100 is a Class J fast-acting fuse with a voltage rating of 600 volts alternating current and 300 volts direct current. Its amperage rating is 100 amps, making it suitable for various applications requiring reliable current limiting. This fuse features dimensions of one and one-eighth inches in diameter by four and four-eighths inches in length.

• Type: Current Limiting Fuse
• Fast Acting Characteristics
• UL Listed and RoHS Compliant

Product Highlights

This fuse is designed for use in capacitors, load centers, panelboards, switchboards, feeder circuits, and circuit breakers. Its unique design prevents substitution with lower-rated fuses, ensuring safety and reliability in electrical systems.

Product Information

Standard Information

• Manufacturer: Mersen
• Part Number: A4J100

Technical Specifications

• Voltage Rating: 600 VAC/300 VDC
• Amperage Rating: 100 A
• Interrupt Rating: 200/100 kA
• Body Type: Cylindrical
• Body Size: 1-1/8 in Dia x 4-4/8 in L
• Mounting Type: Clip
• Terminal Type: Blade
• Material: Polyester
• Country of Origin: Mexico
• UPC: 782001960322
• UNSPSC Code: 39121600
