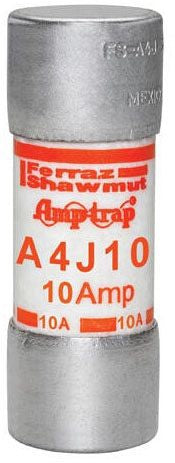

Mersen A4J10 600V 10A Class J Fuse

Product Description

The Mersen A4J10 is a 600 Volt Class J fuse designed for current limiting applications. This fuse operates at 10 Amps with fast acting characteristics, ensuring reliable performance under various load conditions. It combines essential specifications and features to protect electrical circuits effectively.

• Type: Fuses
• Fuse Rating: 600V AC / 300V DC
• Interrupt Rating: 200/100 kA

Product Highlights

This fuse is designed for use in different applications including load centers, circuit breakers, and various electrical installations. Its unique dimensions help prevent the substitution of lower-rated fuses.

Product Information

Standard Information

• Brand: Mersen
• MPN: A4J10

Technical Specifications

• Amperage Rating: 10 A
• Voltage Rating: 600 VAC / 300 VDC
• Fuse Class: Class J
• Body Material: Fiberglass
• Mounting Type: Clip
• Body Size: 13/16 in diameter x 2-1/4 in length
• Terminal Type: Ferrule
• Application: Capacitors, switchboards, feeder circuits
