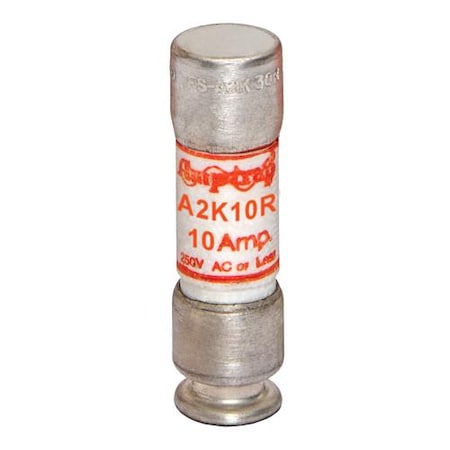

Mersen A2K10R Fuse, Fast Acting, 10A

Product Description

The MERSEN A2K10R is a fast-acting, 10A fuse designed for circuit protection. This Class RK1 fuse is suitable for branch/feeder circuits and back-up protection where high short-circuit currents are present. It features a GMG body material and tin-plated copper connections. The fuse has an interrupt rating of 200 kAIC and voltage ratings of 250V AC/DC.

• Fiberglass body provides dimensional stability in harsh industrial environments
• Rejection style design prevents replacement by other fuse classes
• High degree of current limitation for low peak let-thru current

Product Highlights

This Mersen Amp-Trap fuse offers reliable, fast-acting protection for various applications, including load centers, panelboards, and feeder circuits.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: A2K10R
• Country of Origin: Mexico

Technical Specifications

• Amps: 10A
• Item: Fuse
• Class: Class RK1
• Speed: Fast Acting
• Length: 2"
• Diameter: 0.56"
• Mounting: Clip
• Fuse Amps: 10A
• Fuse Size: 2 in L x 0.56 in D
• Fuse Speed: Fast Acting
• Body Material: GMG
• Interrupt Rating: 200 kAIC
• AC Voltage Rating: 250V
• DC Voltage Rating: 250V DC
• Connection Material: Tin-Plated Copper
• Fuse Voltage Rating: 250V
• Material: Fiber
• Application: Load Centers, Panelboards, Switchboards, Bus Duct, Feeder Circuits, Non-inductive Loads and Lighting Circuits Applications
• Terminal Type: Ferrule
• Voltage Rating: 250
• Type: Current Limiting Low Voltage
• Series: A2K-R
• Amperage Rating: 10
