Mersen 9F60LJD506 5 kV Ferrule Mount Motor

Product Description

The MERSEN 9F60LJD506 R-Rated fuses are current-limiting, high interrupting rating fuses intended for the short circuit protection of medium voltage motors and motor controllers. R-Rated fuses are back-up fuses that have a minimum interrupting rating, and must be coordinated with overload relays in combination motor starters.

• Current-limiting
• High interrupting rating
• Intended for short circuit protection of medium voltage motors and motor controllers

Product Highlights

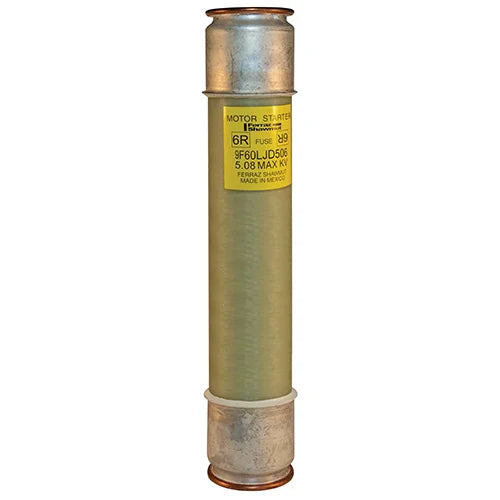

These fuses come with ferrule and are mounted in spring reinforced clips. It has a visual indicator and silver-plated copper connection.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: 9F60LJD506
• Country of Origin: Mexico

Technical Specifications

• Item number: 9F60LJD506
• Rated voltage AC UL: 5080 V
• Frequency (Hz): 50/60 Hz
• AC or DC: AC
• Speed/Characteristic: R-Rated
• Mounting: Ferrule
• AC Max I.R./Breaking Capacity: I1: 50 kA
• Design Details: 6R
• Indication System: Yes
• Indication System Type: Visual Indicator
• Connection/Terminal Material: Silver-Plated Copper
• Connection/Terminal Type: Ferrule
• Product Diameter: 3 in
• Product Width: 3 in
• Product Length: 15.97 in
• Product Height: 3 in
• Product group: Medium Voltage IEEE Fuses
• Body/Insulating Material: Epoxy
• Brand: FERRAZ SHAWMUT
• Type: Motor Protection, Fuse, R-Rated
• Amps: 170A
• Class: EJ-2
• Volts AC: 5.080kV
• Interrupt Rating DC: 50 kA
• Fuse Type: Motor Circuit Protection
• Rating, Type: R-Rated, Current Limiting
• Voltage: 5080V AC
• Rating Size: 6R
• Interrupting Rating Max: 50kA (sym)
• Barrels: 1
• Barrel OD: 3 in.
• Length: 15.97 in.
