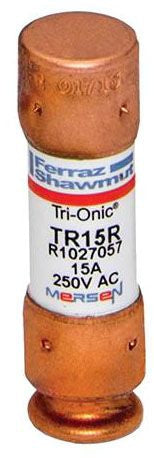

MERSEN 82034 Class RK5 Time Delay Fuse

Product Description

The Mersen 82034 is a Class RK5 time-delay fuse, designed for reliable protection in various electrical applications. This fuse features a voltage rating of 250VAC/160VDC and a current rating of 15A. Its interrupting rating is 200kA AC, ensuring safety and efficiency in operation.

• Time Delay characteristic for handling temporary overloads.
• Voltage rating of 250VAC/160VDC.
• Designed for clip mounting.

Product Highlights

This fuse is suitable for motor circuits, mains, feeders, branch circuits, transformers, and general-purpose equipment.

Product Information

Standard Information

• Type: Class RK5
• Characteristics: Time Delay

Technical Specifications

• Voltage Rating: 250 Volt AC/160 Volt DC 50/60 Hertz
• Current Rating: 15 Amp
• Interrupting Rating: 200 Kiloamp AC
• Diameter: 0.56 Inch
• Length: 2 Inch
• Approval: UL 248-12, CSA C22.2 248.1, DC 248
• RoHS Compliant: Yes
• Mounting Type: Clip
• Terminal Material: Copper
• Body Material: Polytube
