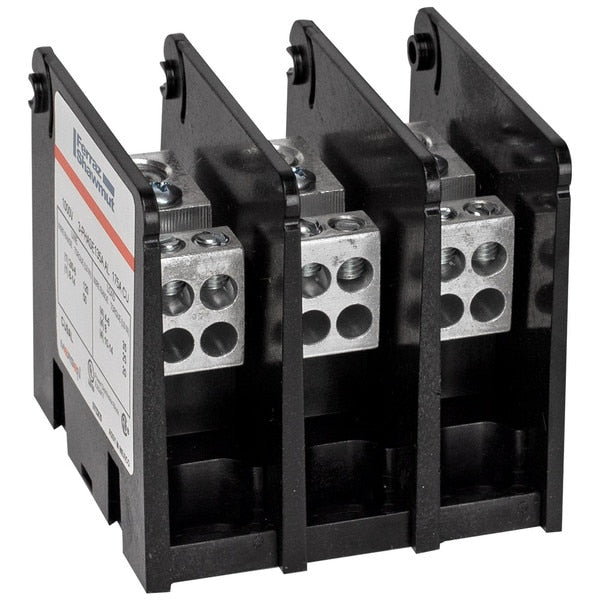

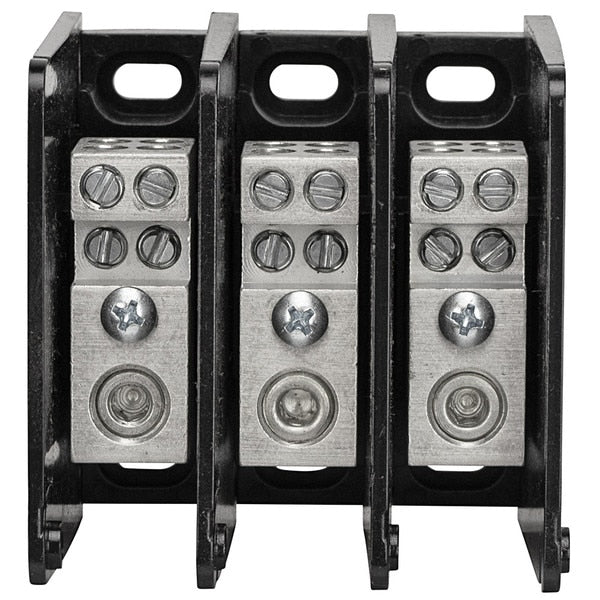

Mersen 63133 mpdb series power distribution block 175A

Product Description

The MERSEN 63133 MPDB Series power distribution block provides a safe and easy method of splicing cables and splitting primary power into secondary circuits. It fulfills requirements for fixed junction tap-off points. The block is UL and CSA approved and meets spacing requirements for feeder and branch circuits.

• Safe and easy method of splicing cables
• Splitting primary power into secondary circuits
• Fulfilling requirements for fixed junction tap-off points

Product Highlights

The MERSEN power distribution block is ideal for splicing cables, splitting primary power into secondary circuits, and creating fixed junction tap-off points.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: 63133
• Country of Origin: Mexico

Technical Specifications

• Item number: MPDB63133
• Description: Open-Style PDB UL 1953 1000V 135A Tin-plated Aluminum - 175A 3-Pole 1 - 4 openings; 2/0-#14 --- #4-#14 Box to Box
• EAN/UPC Code: 782001449421
• Rated voltage AC UL: 1000 V
• Rated voltage DC UL: 1000 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating (AL): 135 A
• Ampere Rating (CU): 175 A
• ROHS Compliant: Yes
• AC or DC: AC/DC

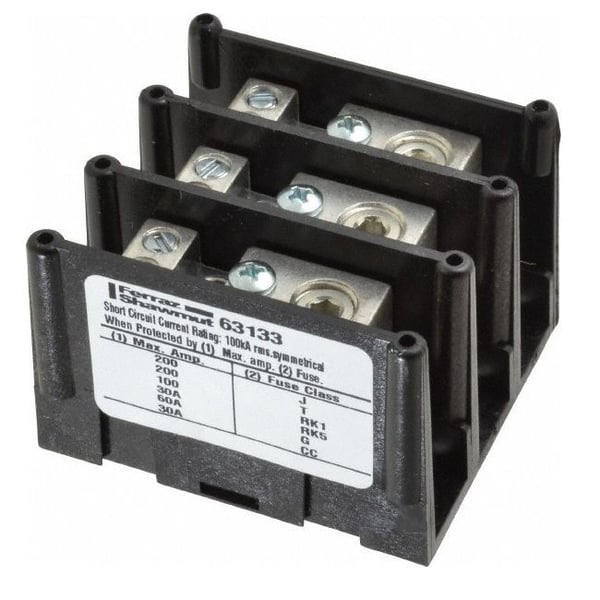

• Short Circuit Rating (Class CC): 100 kA with 30A Fuse
• Short Circuit Rating (Class G): 100 kA with 60A Fuse
• Short Circuit Rating (Class J): 100 kA with 200A Fuse
• Short Circuit Rating (Class L): 100 kA with 200A Fuse
• Short Circuit Rating (Class RK1): 100 kA with 100A Fuse
• Short Circuit Rating (Class RK5): 100 kA with 30A Fuse
• Short Circuit Rating (Standalone): 10 kA
• Short Circuit Rating (Class T): 100 kA with 200A Fuse
• Number of Poles: 3
• Connector Material: Tin-plated Aluminum
• Number of Openings per Pole (Primary): 1
• Number of Openings per Pole (Secondary): 4

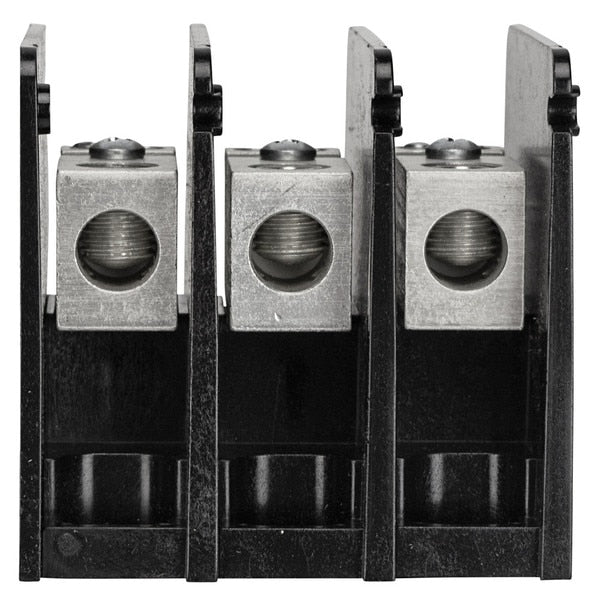

• Connector Type (Primary): Box

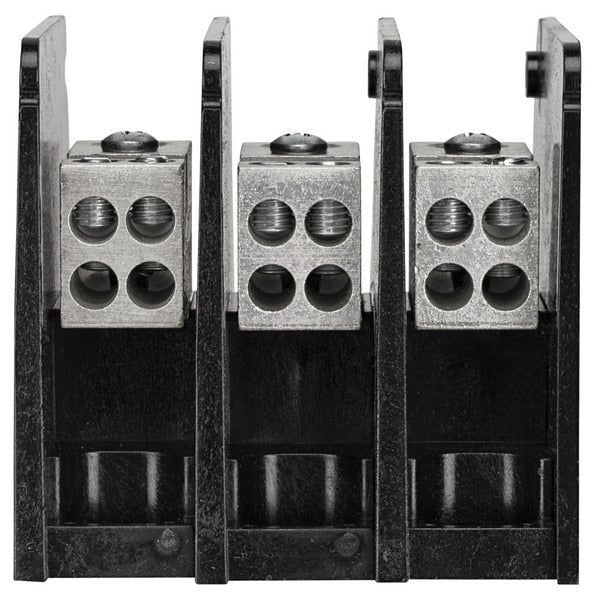

• Connector Type (Secondary): Box
• Hex/Screw Size & Type (Primary): 7/16-20 x .55
• Hex/Screw Size & Type (Secondary): 1/2-28 x .38
• Hole Diameter (Primary): 0.44 in
• Hole Diameter (Secondary): 0.25 in
• Torque Rating (Primary): 2/0-#6 120; #8-#14 50
• Torque Rating (Secondary): #4-#6 35; #8 25; #10-#14 20
• Wire Range (Primary): 2/0-#14
• Wire Range (Secondary): #4-#14
• Installation Mounting: Direct Screw Mount
• Product Width: 2.91 in
• Product Length: 3.08 in
• Product Height: 2.81 in
• Product group: Power Distribution Blocks
• Body/Insulating Material: Glass Filled Polycarbonate
• Product Weight: 0.56 lb
• Single or dual primary connection: Up to 20 secondary connections
• Individual cross connections for each layer: Standard aluminum box connectors accommodate aluminum or copper wire (1 conductor per opening)
• Direct mount: UL94 V-0
• UL/CSA: RoHS compliant
• Part Number #: 63133
• Amperage Rating: 185/175 A
• Finish: Tin Plated
• Series: 63000
• Short Circuit Current Rating (kA): 100 kA
• Type: Box to Box Termination
• Wire Size: 2/0 to 14 AWG 1 Line, 4 to 14 AWG Load
• Material: Polycarbonate
• Manufacturer Name: MERSEN
• UNSPSC: 39121628
• For Conductor Material: Aluminum; Copper
• For Line Aluminum Wire Size - Maximum: 2/0 AWG
• For Line Aluminum Wire Size - Minimum: 14 AWG
• For Line Copper Wire Size - Maximum: 2/0 AWG
• For Line Copper Wire Size - Minimum: 14 AWG
• For Load Aluminum Wire Size - Maximum: 4 AWG
• For Load Aluminum Wire Size - Minimum: 14 AWG
• For Load Copper Wire Size - Maximum: 4 AWG
• For Load Copper Wire Size - Minimum: 14 AWG
• Line Connections/Pole: 1
• Line Side Connection Type: Lug
• Load Connections/Pole: 4
• Load Side Connection Type: Lug
• Maximum Current - Aluminum Conductor: 175 A
• Maximum Current (Copper Wire): 175 A
• Maximum Voltage: 1,000 V
• Mounting Type: Surface
• Overall Depth: 2.81 in
• Overall Length: 3.08 in
• Overall Width: 2.91 in
• Power Distribution Block Design: Open
• Standards: CSA Class 6228-01; UL 1953
• Voltage: 1000
• Catalog Number: MPDB63133
• Catalog / Class: POWER DISTRIBUTION BLOCK
• SKU: MPDB63133
• AC Voltage: 600 VAC
• Current Rating: 175 A
• Number of Inputs per Pole: 1
• Number of Outputs per Pole: 4
• Electrical Connection: Box Lug/Box Lug
• Mounting: Panel Mount
• Line Side Wire Range: 2/0-14 AWG
• Output Wire Range: 4-14 AWG
• Cover Included: No
• Composition: Glass-Fill Polycarbonate
• Color: Black
• Approvals: CSA, UR
• Net Weight: 0.51 lbs
