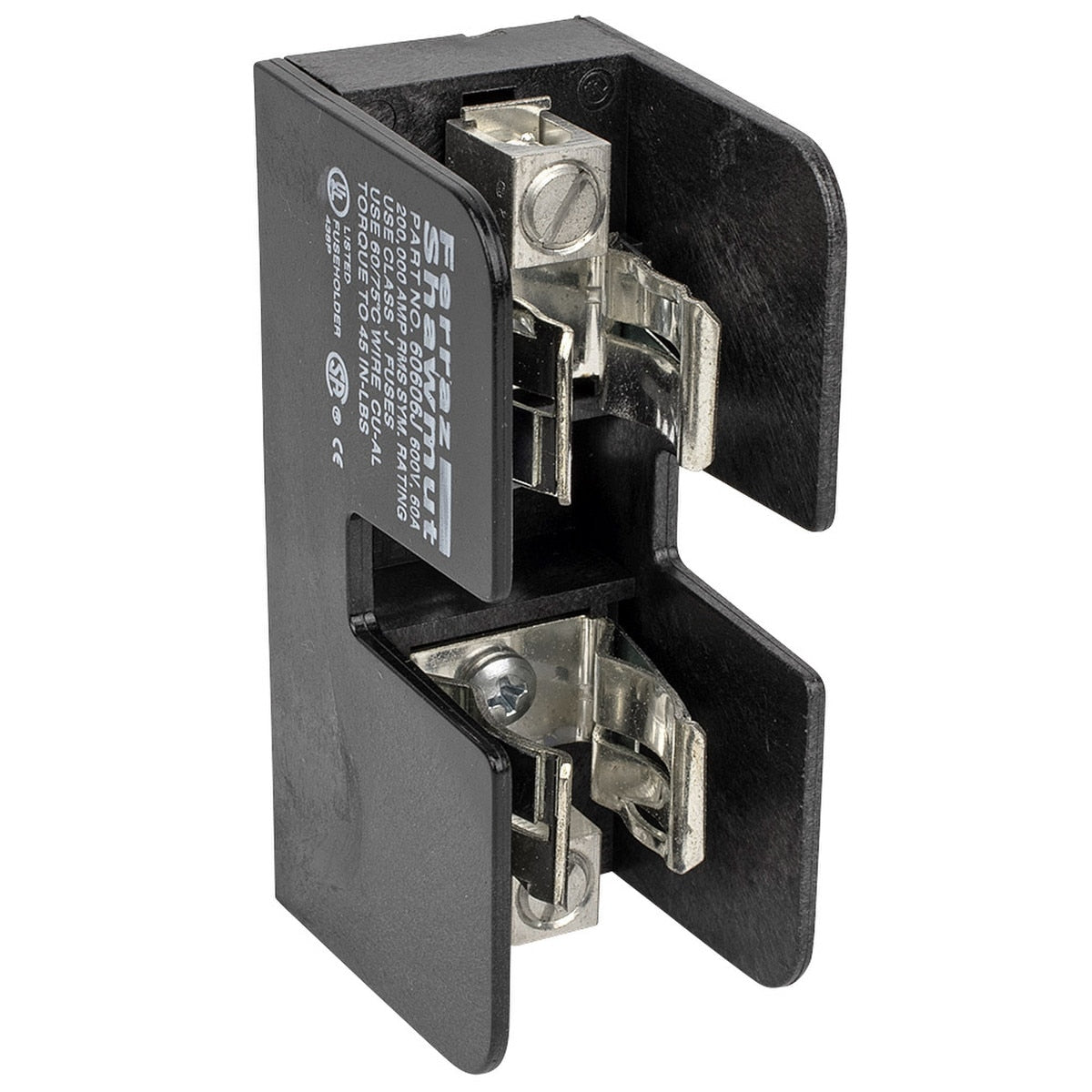

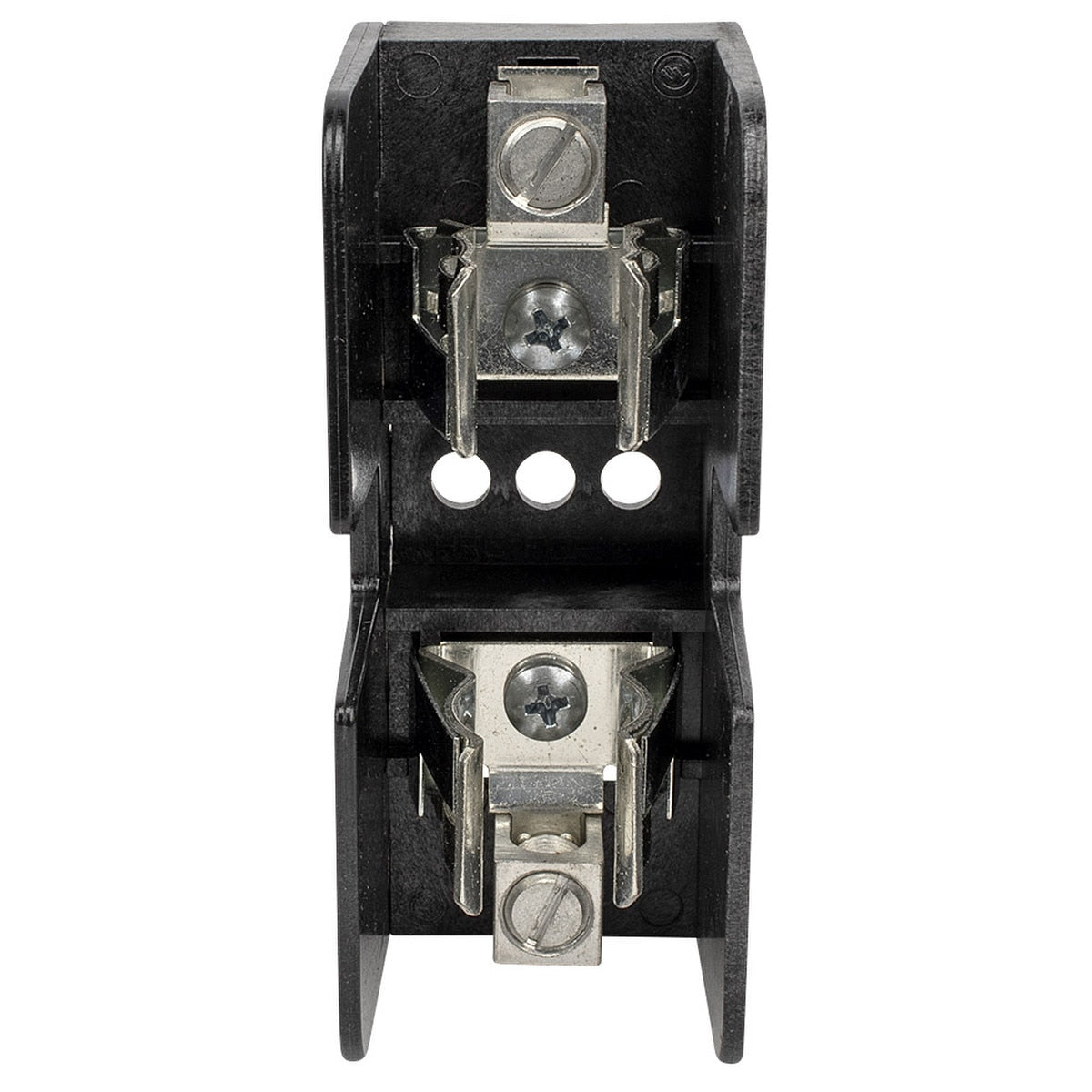

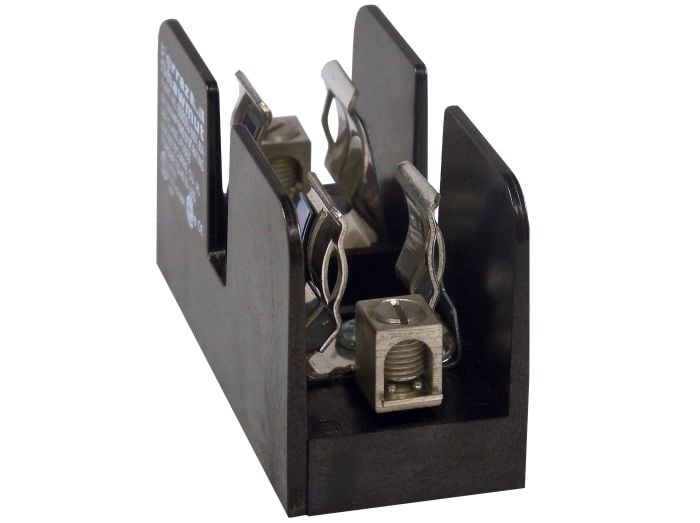

Mersen 60606J Fuse Block 600VAC 600VDC Class J 60A 1-Pole Box with Reinforced Clip

Product Description

The Mersen 60606J fuse block is designed for 600VAC and 600VDC Class J fuses, supporting up to 60A. This 1-pole fuse block features a box connection with a reinforced clip. Constructed from glass-filled polycarbonate, it offers durability and reliable performance. Ideal for industrial applications requiring robust fuse protection. The reinforced clip ensures secure fuse retention under demanding conditions.

• Accommodates Class J fuses up to 60A
• Features a reinforced clip for secure fuse retention
• Constructed from durable glass-filled polycarbonate

Product Highlights

The Mersen 60606J fuse block provides reliable protection for Class J fuses in industrial applications, featuring a reinforced clip and durable construction.

Product Information

Standard Information

• Brand: Mersen
• Manufacturer Part Number: 60606J
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: 60606J
• Manufacturer: Mersen
• Brand: Mersen
• Country of Origin: Mexico
• Made in USA: No
• Amperage Rating: 60 A
• Connection: Box with Reinforced Clip
• Material: Glass Filled Polycarbonate
• Mounting: Screw
• Number of Poles: 1
• Phase: 1
• Special Features: Class J Blocks (600V) use with AJT, A4J, HSJ
• Standard: All class J fuse blocks meet the requirements of UL4248 (formerly UL512) UL listed Guide IZLT, File E52283 CSA certified class 6225, File 32169
• UPC: 782001664206
• GTIN: 00782001664206
• Item Type: UL/CSA Fuse Bases
• Voltage Rating: 600 VAC/VDC
• Width: 1.65 in
• Height: 2.12 in
• Length: 4 in
• Series: JFB
• Features: Space Saver
• Amp Range: 31 to 60 A
• Fuse Type: Industrial
• Standards: CSA Certified, UL Listed
• Wire Size: 14 to 2 AWG
• Body Material: Glass Filled Polycarbonate
• For Fuse Size: 2 3/8 in L x 1 1/16 in dia
• Fuse UL Class: J
• Connector Type: Box Lug
• Fits Fuse Type: Industrial
• Mounting Style: Bolt-Down
• For Fuse Series: AJT, A4J, HSJ
• Fuse Block Style: Nonrejection
• Fuse Holder Code: AA
• Fuse Block Design: Open
• Visual Indication: Nonindicating
• Frequency Range (Hz): 50/60 Hz
• Max. Operating Temp.: 80 deg C
• Rated Torque (In.-Lb.): 45 lb-in
• Spring Reinforced Clip: Yes
• Length (Straight Wireway): 4.0 in
• Indicating / Nonindicating: Nonindicating
• Short Circuit Current (KA): 200 kA
• Fuse Block or Fuse Holder Type: Fuse Block
• Amp Range of Fuse Block or Holder: 0 to 60A
• Fuse Block or Holder AC Voltage Rating: 600VAC
• Fuse Block or Holder DC Voltage Rating: 600VDC
• Amperage: 60 Amp
• Conductor Size: 14-2 AWG
• Frequency: 50 Hz
• Fuse Class: Class J
• Fuse Interrupt Rating: 60 A
• Insulation Material: GFPC
• Rated Voltage AC: 600 V
• Rated Voltage DC: 600 V
• TC Connection: Box
• Torque: 45 lb-in
• Type: Open Style
• Voltage: 600 Volt
• Class: J
• Used With: Class AJT, A4J, HSJ Fuses
• Model: MERSEN 60606J
• UNSPSC: 39121624
• Number of Phases: 1
• Mounting Type: Threaded
• Connection Type: Box Lug
• Temperature Rating: -25 deg C
• BABA Compliant: No
• Manufacturer Part Number: 60606J
• Product Series: CLASS J
• Family Series: Mersen Fuseblocks & Holders, CLASS J Series
• Description: Fuse Block 600VAC 600VDC Class J 60A 1-Pole Box with Reinforced Clip
• Current Rating: 60 A
• Poles: 1
• Composition: Glass-Filled Polycarbonate
• Trip Indicator: No
• Reinforced: Yes
• Enclosed: No
• Touch Safe: No
• Approvals: CSA, UL
