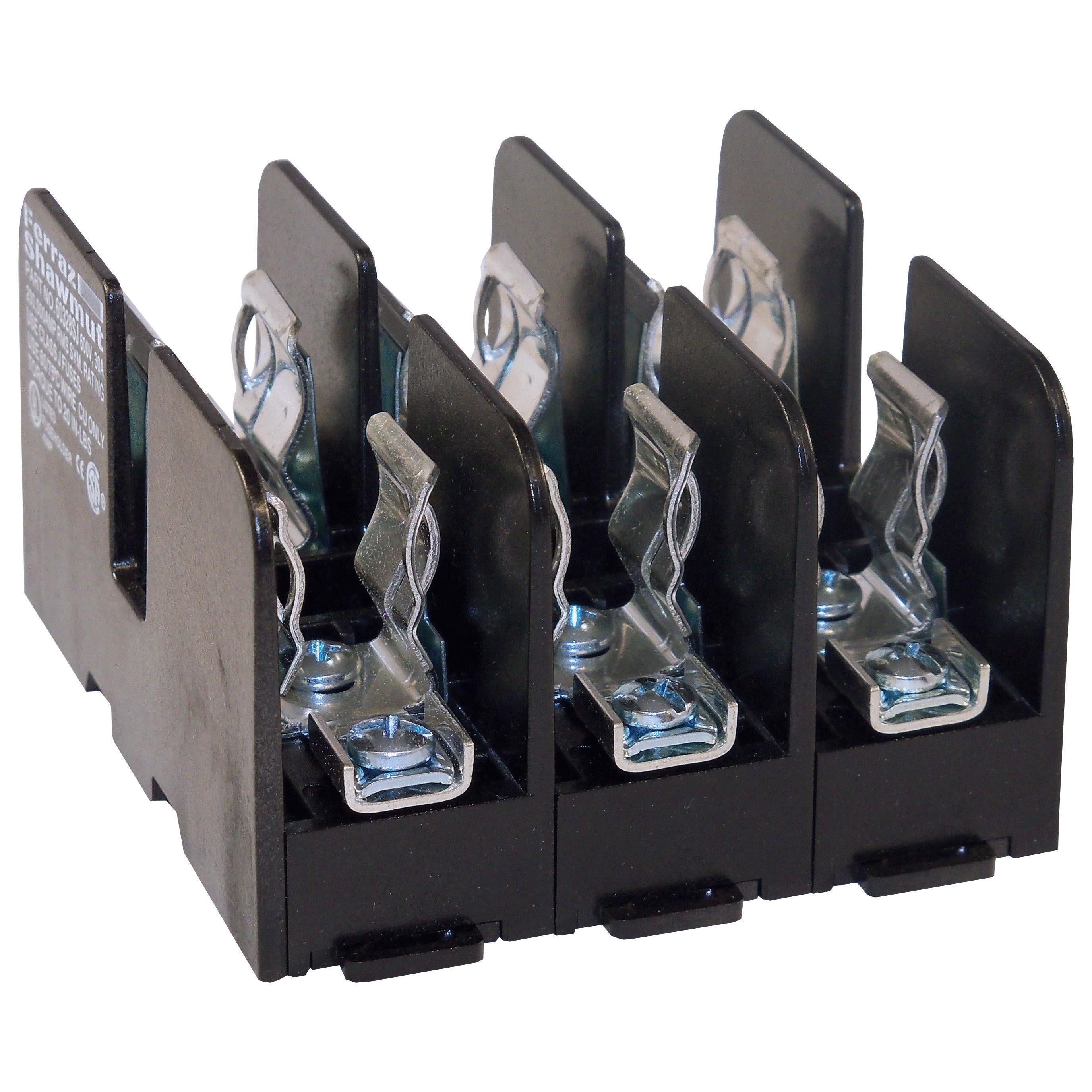

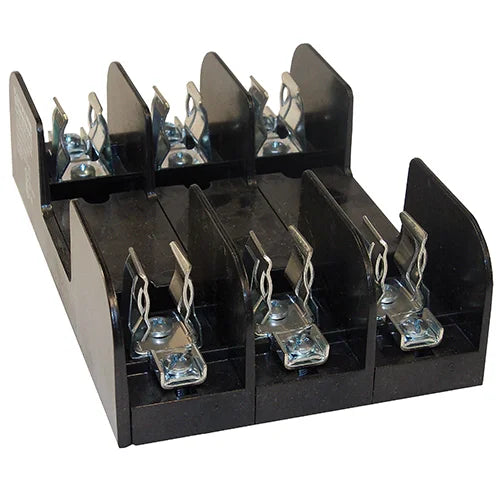

Mersen 60328SJ Fuse Block 600V 30A 3-Pole

Product Description

The MERSEN 60328SJ is a 600V, 30A, 3-pole fuse block designed for UL Class J fuses. It features spring-reinforced pressure plate connectors suitable for copper wire sizes #4-14. The insulators are molded from glass-filled polycarbonate, ensuring a dielectric strength exceeding 2500V.

• Accommodates Class J fuses ranging from 0-600A at 600V.
• Features pressure plate connectors for stranded or solid copper or aluminum wire.
• Constructed with glass-filled polycarbonate insulators.

Product Highlights

This Mersen fuse block offers reliable circuit protection with its robust construction and versatile connector options.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: 60328SJ
• Country of Origin: Mexico

Technical Specifications

• Ampere Rating: 30 A
• Rated Voltage AC: 600 V
• Rated Voltage DC UL: 600 V
• Fuse Class: Class J
• Number of Poles: 3-Pole
• Mounting Type: DIN Rail/Threaded Mount
• Product Length: 177.8 mm
• Product Width: 115.6 mm
• Product Height: 50.8 mm
• Operating Temperature: -25 deg C
• Short Circuit Current Rating (SCCR): 50 kA
• Frequency (Hz): 50/60 Hz
• Fuse Installation Method: Clip-in
• Torque Rating: 2.26 N m
• Max Fuse Rating: 30 A
• Installation Mounting: Direct Screw Mount
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Body/Insulating Material: Glass Filled Polycarbonate
• Current Rating: 30 A
• Voltage Rating: 600 V
• Connector Type: Pressure Plate
• Fuse Type: Class J
• Insulation Material: GFPC
• Rated Voltage DC: 600 V
• Torque: 20 lb-in
• Type: Open-Style
• Voltage: 600 Volt
• Terminal Type: Pressure Plate
• Wire Range: 14 to 4 AWG
• Fuse Series: AJT, A4J and HSJ Series
• Material: Glass Reinforced Polycarbonate
• Length: 3.9 in
• Width: 3.62 in
• Height: 2.2 in
• Fuseholders: Fuseholders
• Fuseholder Type: Block
• Number of Circuits: 3
• Termination Style: Screw Terminal, Pressure Plate
• Contact Material: Copper
• Contact Finish: Tin
