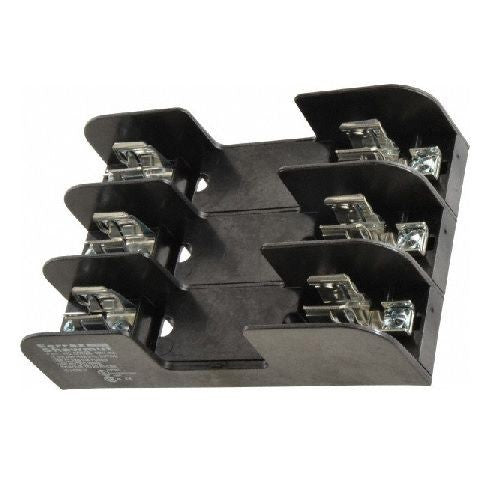

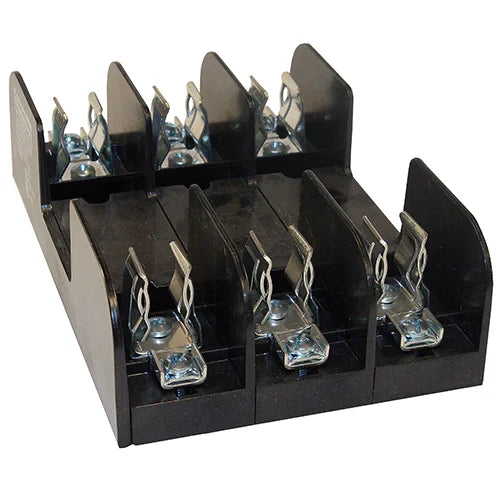

Mersen 60328 Fuse Block 600VAC/600VDC Class H/K 30A 3-Pole

Product Description

The MERSEN 60328 is a fuse block that accommodates all Class H, K and R 250 and 600V power fuses. It features a choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum wire. Insulators are molded glass-filled polycarbonate with verified dielectric strength in excess of 2500V.

• Accommodate all Class H, K and R 250 and 600V power fuses
• Choice of screw, pressure plate, box and special order stud connectors
• Insulators are either molded glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V

Product Highlights

The MERSEN 60328 fuse block is suitable for Class H/K fuses, offering a 3-pole configuration and a 30A ampere rating.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: 60328

Technical Specifications

• Item number: 60328
• EAN/UPC Code: 782001759285
• Rated voltage AC UL: 600 V
• Rated voltage DC UL: 600 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 30 A
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Fuse Class: Class H/K
• Short Circuit Current Rating (SCCR): 50 kA
• Number of Poles: 3-Pole
• Fuse Installation Method: Clip-in
• Torque Rating: 2.26 N m
• Max Fuse Rating: 30 A
• Installation Mounting: Direct Screw Mount
• Product Width: 115.6 mm
• Product Length: 177.8 mm
• Product Height: 50.8 mm
• Product group: Fuse Bases
• Body/Insulating Material: Glass Filled Polycarbonate
• UNSPSC Code: 39120000
• Alternate Mfr Part Number: N214947
• Brand: Mersen/Ferraz Shawmut
• Manufacturer Part Number: 60328
• UPC Code: 0782001759285
• Fuse Holder Code: P
• Material: GFPC
• Mounting Type: Threaded
• Number of Phases: 3
• Number Of Poles: 3
• Suitable For Use With: OTS, RFS, A6Y Types 1 and 3 CRS, NRS Fuses
• Type: Open Style
• Voltage Rating: 600 VAC/VDC
• Wire Size: 10 to 14 AWG Cu
• Standard & Approvals: UL 4248-6 (Class H) and 4248-9 (Class K), UL Listed, Guide IZLT, Guide IZLT2, File E52283, CSA Certified Class 6225, File 32169, RoHS Compliant
• Class: H/K
• Connection Type: Pressure Plate
• Series: 60
• Mpn: 60328
• Gtin: 00782001759285
