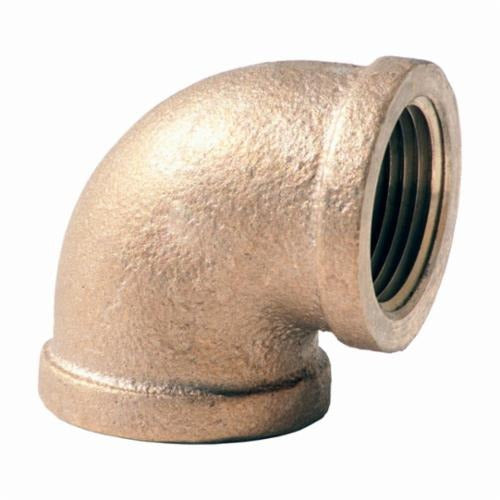

Merit Brass XNL101-08 90 Degree Pipe Elbow 1/2 Inch Fnpt

Product Description

The MERIT BRASS XNL101-08 is a 90-degree pipe elbow rated at 125 lb, designed to change flow direction in threaded pipe systems. It features a 1/2-inch nominal size with female National Pipe Taper (FNPT) threads on both ends, allowing it to connect directly to standard male-threaded pipe or fittings. Constructed from rough brass, this elbow provides reliable performance in moderate-pressure plumbing and fluid handling applications. Plumbers and pipefitters install this type of fitting where a right-angle directional change is needed within a threaded piping run.

This fitting is suited for residential and light commercial plumbing, hydronic heating, and general fluid handling systems where 125 lb-rated brass fittings are specified. The 1/2-inch FNPT thread pattern conforms to standard pipe thread specifications, making it a straightforward drop-in elbow in new construction or retrofit work. It is appropriate for water, air, and other compatible media in systems where brass fittings are an acceptable or required material.

Key Features

• 90-degree turn for right-angle direction changes in threaded pipe runs
• 1/2-inch nominal size with FNPT threads on both ends
• 125 lb pressure class rating
• Rough brass construction for corrosion resistance in plumbing applications
• Standard FNPT thread pattern for compatibility with common male-threaded pipe and fittings

Compatibility

Designed as an OEM-style replacement or standard fitting for 1/2-inch FNPT threaded pipe systems rated to 125 lb class.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter in accordance with applicable local plumbing codes and IPC guidelines. Shut off and depressurize the system before removing or installing any threaded fitting. Apply appropriate thread sealant or PTFE tape to male threads before assembly, and hand-tighten before applying wrench torque. Do not over-tighten brass fittings, as the material can crack under excessive force.

Technical Specifications

• Pipe Size (Nominal): 1/2 inch
• End Style: FNPT (Female National Pipe Taper) both ends
• Angle: 90 degrees
• Pressure Class: 125 lb
• Material: Brass
• Finish: Rough
• Origin: Import

Standard Information

• Brand: MERIT BRASS
• Manufacturer Part Number: XNL101-08
