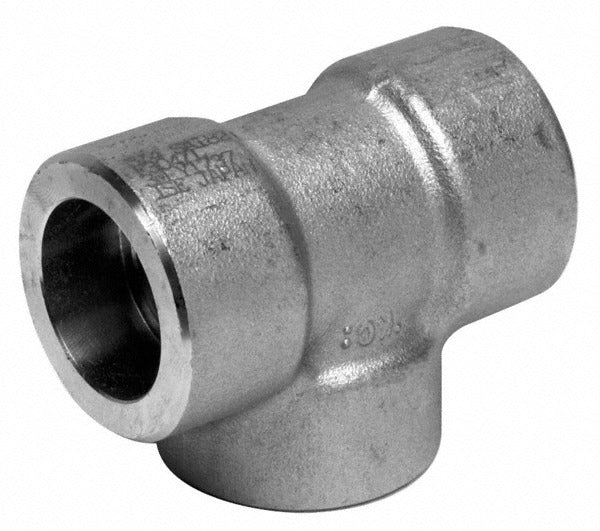

Merit Brass SW3606D-02 Pipe Tee 1/8 in Socket Weld Ss

Product Description

The MERIT BRASS SW3606D-02 is a 1/8 inch socket weld pipe tee manufactured from 316/316L stainless steel. This fitting creates a branch connection in socket weld piping systems and is rated for service up to 3000 psi. The dual-grade 316/316L material delivers strong corrosion resistance in demanding environments, including exposure to chlorides, acids, and high-moisture process conditions. Plumbers, pipefitters, and industrial maintenance technicians install this fitting in high-pressure line assemblies where a full-penetration socket weld joint is required.

This tee is suited for residential and commercial plumbing, industrial process piping, and instrumentation lines where a socket weld end connection is specified. The 1/8 inch fitting size positions it in small-bore applications such as instrument impulse lines, chemical feed systems, and compressed gas distribution. Its 316/316L material grade makes it appropriate for corrosive service environments where standard carbon steel or 304 stainless would not meet the application requirements.

Key Features

• 316/316L dual-grade stainless steel for broad corrosion resistance in aggressive media
• 3000 psi pressure rating suitable for high-pressure small-bore service
• Socket weld x socket weld end connections on all three ports
• 1/8 inch fitting size for small-bore instrument and process piping
• Compact weight of 0.25 pounds minimizes dead load in tight installations

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1/8 inch socket weld piping systems requiring 316 or 316L stainless steel construction.

Installation Notes

Socket weld fittings are installed by licensed pipefitters or qualified plumbers in accordance with applicable codes such as ASME B31.1 or B31.3. Depressurize and isolate the line completely before cutting in or replacing any fitting. The socket weld joint requires a proper gap between pipe end and socket bottom before welding to allow for thermal expansion. Do not use pipe dope or thread sealant on socket weld connections.
