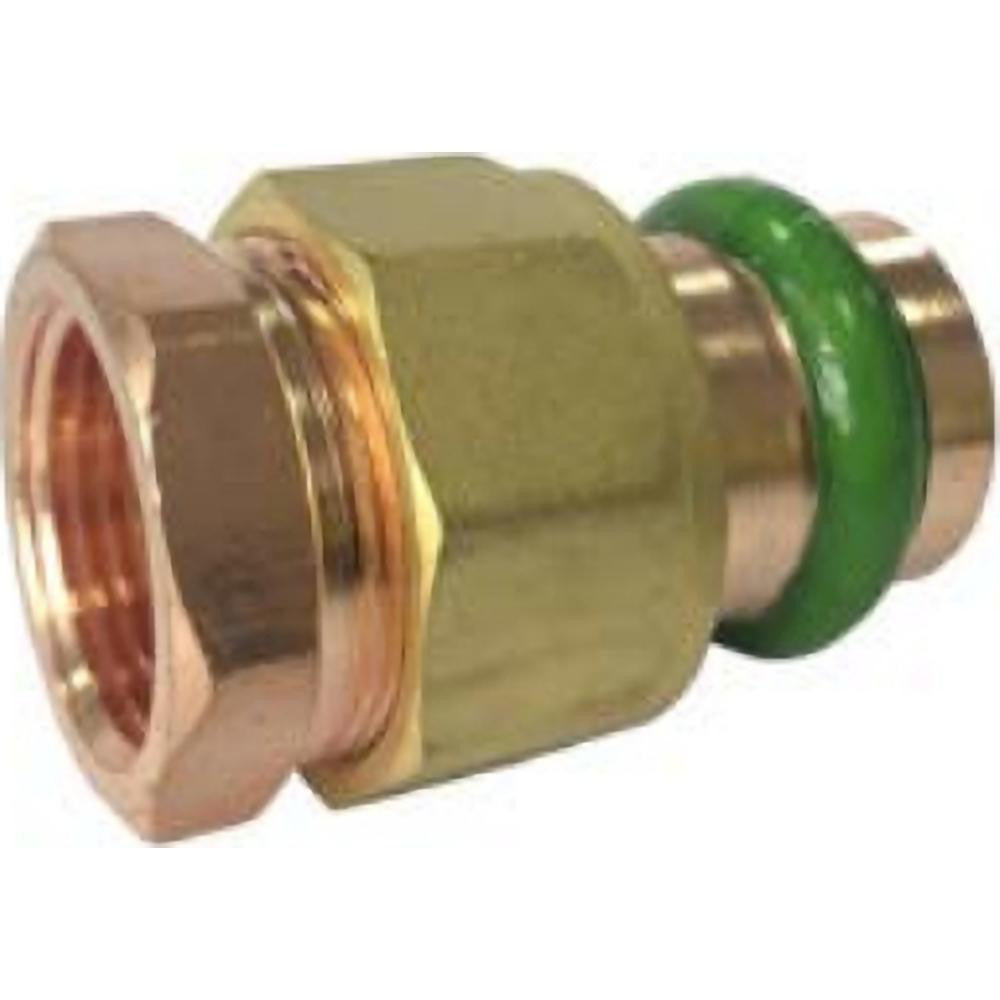

Merit Brass MB35020 1 in CopperPress x FIP Union

Product Description

The Merit Brass MB35020N is a 1 in CopperPress x FIP Union with VIPR Press Ring. Suitable for HVAC, plumbing, municipal, mechanical, and industrial applications. It adheres to ASME B31.1 and B31.3 standards. The fitting features a press x thread end connection, constructed from copper, and is lead-free. It supports a maximum working pressure of 300 psi and a maximum working temperature of 250°F.

• Features Visual Indicator Press Ring (VIPR) for identifying un-pressed connections
• Incorporates Leak Before Press (LBP) technology for visual indication of unpressed fitting
• Suitable for use in plumbing, HVAC, and industrial applications

Product Highlights

The Merit Brass CopperPress union fitting ensures secure connections with visual indicators for unpressed connections, suitable for diverse applications.

Product Information

Standard Information

• Brand: MERIT BRASS
• Manufacturer Part Number: MB35020
• Country of Origin: VARIOUS

Technical Specifications

• Brand: Merit Brass
• MFR Part No: MB35020
• Nominal Size: 1 in
• Fitting Type: Female Union
• Fitting Size: 1
• Style: Press Fitting
• Connection Type: Push-to-Connect; Thread
• Material: Copper
• End Connection: Press x Thread
• Thread Standard: NPT
• Outside Diameter (Inch): 1.508
• Maximum Working Pressure (Psi - 3 Decimals): 300.000
• Maximum Working Temperature (F): 250.000
• Minimum Working Temperature (Deg F): 0
• Lead Free: Yes
• Standards: IAPMO PS117; NSF-61/372
• Maximum Working Temprature (Deg C): 121
• Minimum Working Temperature (Deg C): -17
