Merit Brass AGDI-32 Back-Up Flange 2 in

Product Description

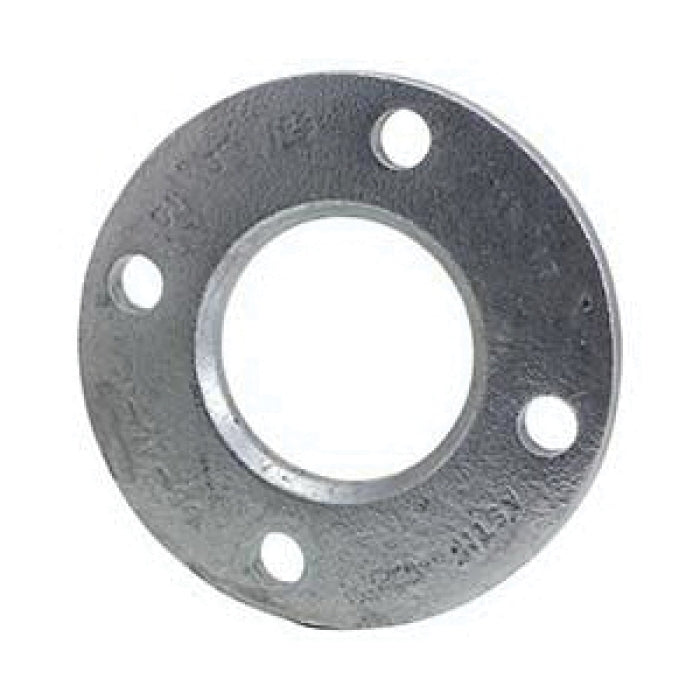

Merit Brass AGDI-32 is a back-up flange designed for reliable use in various piping applications. This product features a nominal size of two inches with a two point four three seven inch inside diameter. Constructed from ductile iron, it has a thickness of one half inch and an outside diameter of six inches. Each flange supports a four bolt hole configuration arranged on a four point seven five inch bolt circle.

• Made of durable ductile iron
• Galvanized finish for corrosion resistance
• Four bolt holes for secure installation

Product Highlights

This back-up flange is ideal for connecting pipes and ensuring stability in fluid transfer systems.

Product Information

Standard Information

• Brand: Merit Brass
• Manufacturer: Merit Brass

Technical Specifications

• MPN: AGDI-32
• Nominal Size: 2 in
• Inside Diameter: 2.437 in
• Outside Diameter: 6 in
• Thickness: 1/2 in
• Bolt Circle Diameter: 4-3/4 in
• Bolt Hole Size: 3/4 in
• Material: Ductile Iron
• Finish: Galvanized
• Number of Bolt Holes: 4
• Domestic/Import: Import
