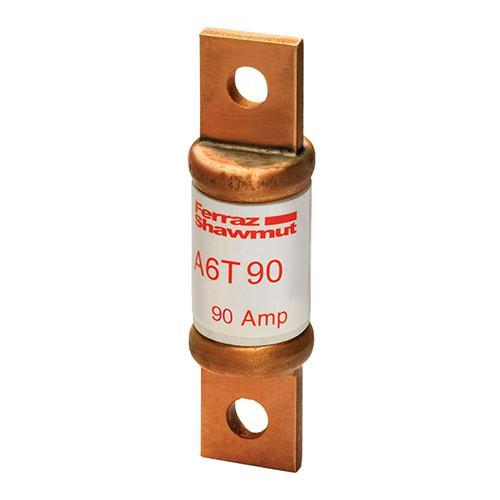

Merit Brass A6T90 Fuse, Fast Acting, 600V, 90A, Class T, 1 Pole

Product Description

The MERIT BRASS A6T90 is a fast-acting fuse designed for 600V systems, with a 90A current rating and Class T classification. This fuse is suitable for AC and DC applications, offering robust protection with a 1-pole configuration. It is built with GMG housing/insulation material and copper connection/terminal material.

• Fast acting fuse with a 90A current rating
• Designed for 600V AC and 300V DC systems
• Class T fuse with a blade-style body

Product Highlights

Offers reliable overcurrent protection in various electrical applications. Suitable for use in fuse blocks with non-rejection style.

Product Information

Standard Information

• Brand: MERIT BRASS
• Manufacturer Part Number: A6T90
• Country of Origin: MX

Technical Specifications

• Item: Fuse
• AC Max. Ir/breaking Capacity I1: 200 kA
• AC Voltage: 600V AC
• AC/DC: AC / DC
• Amps: 90A
• Body Style: Blade
• Housing/Insulation Material: GMG
• Compatible Fuse Block Series: 6Tfb, Gfb
• Connection/Terminal Material: Kobber
• Connection/Terminal Type: Blade
• DC Voltage Rating: 300V DC
• Element: Single
• Equivalent Brand and Series: Bussmann JJS Series, Littelfuse JLLS Series, Mersen A6T Series
• Equivalent Series: A6T, Jjs, Jlls
• Suitable for Fuse Block Style: Ikke-afvisning
• Frame Type: A6T
• Frequency: 50 / 60 Hz
• Fuse Class: Klasse T
• Interrupt Rating: 100 kA @ 300V DC, 200 kA @ 600V AC
• Length: 74.9 mm
• Mounting: boltet
• Number of Poles: 1
• Rated Voltage AC Ul: 600V
• Rated Voltage DC Ul: 300V
• Series: A6T-serien
• Speed: Meget hurtig handler
• Speed Characteristic: Hurtig handler
• Speed Type: Hurtig handler
• Standards: Ul/Csa
• Visual Indication: Ikke-indikerende
• Voltage: 600V
• Voltage Type: AC
