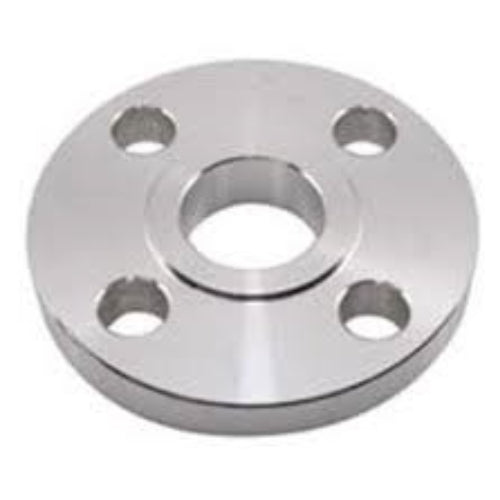

Merit Brass A550L-20 Raised Face Slip-On Flange 300 lb 1-1/4 in

Product Description

Merit Brass offers the A550L-20 Raised Face Slip-On Flange, designed for reliable connections in piping systems. It is made from forged 304/304L stainless steel, ensuring durability and resistance to corrosion. The flange has a nominal size of one and one-fourth inches and meets the pressure class rating of three hundred pounds.

• Material: Forged 304/304L Stainless Steel
• Thickness: Three-fourths inch
• Pressure Class: 300 lb

Product Highlights

This slip-on flange is an import product made for easy installation and secure fit in various pipe systems. Its design accommodates size and load requirements in piping applications.

Product Information

Standard Information

• Brand: Merit Brass
• MPN: A550L-20

Technical Specifications

• Nominal Size: One and one-fourth inches
• Inside Diameter: One point seven inches
• Outside Diameter: Five and one-fourth inches
• Bolt Circle Diameter: Three point eight eight inches
• Length Through Hub: One point zero six inches
• Hub Diameter: Two and one-half inches
• Number of Bolt Holes: Four
• Bolt Hole Size: Three-fourths inch
• Thickness: Three-fourths inch
• Domestic/Import: Import
• Pressure Class: 300 lb
• Type: Raised Face
