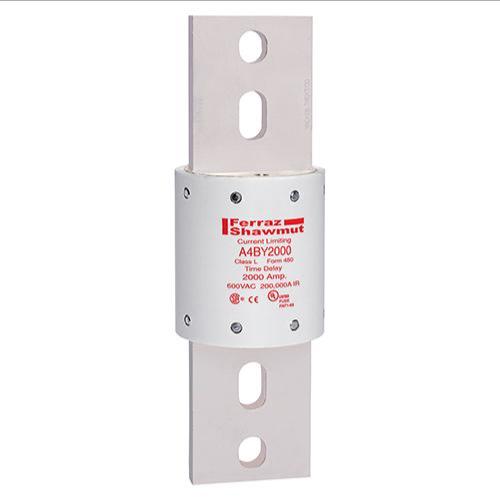

Merit Brass A4BY2000 Time Delay Fuse 600V 2000A

Product Description

The MERIT BRASS A4BY2000 is a time delay fuse designed for 600V AC and 300V DC applications, with a 2000A current rating and Class L classification. It is suitable for use in various low voltage UL/CSA systems. This fuse provides reliable protection with a time delay feature, accomodating temporary overloads without interrupting the circuit.

• Time Delay fuse with a 2000A current rating
• Voltage rating of 600V AC and 300V DC
• Designed to meet UL and CSA standards

Product Highlights

Time delay fuse, 600V, 2000A, Class L, suitable for low voltage UL/CSA systems.

Product Information

Standard Information

• Brand: MERIT BRASS
• Manufacturer Part Number: A4BY2000
• Country of Origin: MX

Technical Specifications

• Item: Time Delay Fuse
• Ac Max I.r./breaking Capacity I1: 200 kA
• Ac Voltage: 600V AC
• Ac/dc: AC/DC
• Amps: 2000A
• Body Material: Glass, Melamine
• Body Style: Blade
• Class: L
• Connection/terminal Material: Copper
• Connection/terminal Type: Blade
• Dc Voltage Rating: 300V DC
• Diameter: 3 1/2"
• Element: Dual
• Equivalent Brand And Series: Bussmann Klu, Bussmann Ktu, Littelfuse Kllu, Littelfuse Klpc, Mersen A4By
• Equivalent Series: A4By, Kllu, Klpc, Klu, Ktu
• Finish: Silver Plated
• Fits Fuse Block Style: Nonrejection
• Frame Type: A4BY
• Frequency: 50/60 Hz
• Fuse Class: Class L
• Fuse Dia.: 3 1/2"
• Fuse Length: 10 3/4"
• Fuse Size: 10 3/4" x 3 1/2"
• Interrupt Rating: 100 kA @ 300V DC, 200 kA @ 600V AC
• Length: 10 3/4"
• Mounting: Bolted
• Number Of Poles: 1
• Product Group: Low Voltage UL/CSA Fuses
• Rated Voltage Ac Ul: 600V
• Rated Voltage Dc Ul: 300V
• Rohs Compliant: Yes
• Series: A4BY Series
• Speed: Time Delay
• Speed Characteristic: Time Delay
• Speed Type: Time Delay
• Standards: Csa, Ul
• Visual Indication: Non Indicating
• Voltage: 600V
• Voltage Type: AC
