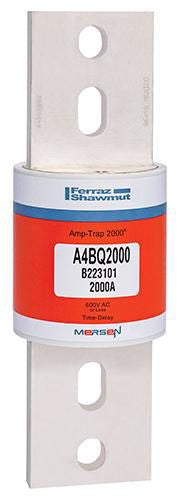

Merit Brass A4BQ2000 Class L Fuse 600V

Product Description

The MERIT BRASS A4BQ2000 is a Class L fuse rated at 600 volts, designed for high-capacity overcurrent protection in industrial and commercial electrical systems. Class L fuses are bolt-in devices intended for high-interrupting-capacity applications where branch circuit or feeder protection is required at current levels beyond the range of standard plug or cartridge fuses. This fuse is installed by licensed electricians working on switchboards, panelboards, motor control centers, and similar high-amperage distribution equipment. Its robust construction suits demanding service environments where reliable fault clearing is critical.

Class L fuses at this voltage rating are commonly specified in commercial and industrial facilities for protection of large motors, transformers, service entrance equipment, and feeder circuits. This fuse is sized for applications where high fault-current interrupting ratings are needed and where NEC-compliant overcurrent protection is required. Electricians working on industrial distribution panels, data centers, manufacturing equipment, or utility service sections will find this fuse appropriate for those high-demand installations.

Key Features

• Class L fuse rating for high-interrupting-capacity overcurrent protection
• 600-volt rating suitable for industrial and commercial distribution systems
• Bolt-in design for secure, low-resistance connections in high-amperage equipment
• Single unit per pack for straightforward inventory and replacement
• Package weight of 9.19 pounds reflects heavy-duty construction appropriate for high-current service

Compatibility

Designed as an OEM-style replacement or direct specification fuse for Class L fusible disconnect switches, switchboards, and motor control centers rated at 600 volts where Class L fuses are required per NEC guidelines.

Installation Notes

Installation must be performed by a qualified, licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lock out/tag out the circuit and equipment before handling or replacing any fuse. Verify that the replacement fuse voltage and current class match the equipment's nameplate requirements before installation. Do not attempt to install or inspect Class L fuses with the circuit energized.

Technical Specifications

• Voltage Rating: 600 volts
• Fuse Class: Class L
• Package Quantity: 1 per pack
• Package Dimensions: 12 inches x 3.75 inches x 3.81 inches
• Weight: 9.19 pounds
• UPC: 78200193941

Standard Information

• Brand: MERIT BRASS
• Manufacturer Part Number: A4BQ2000
