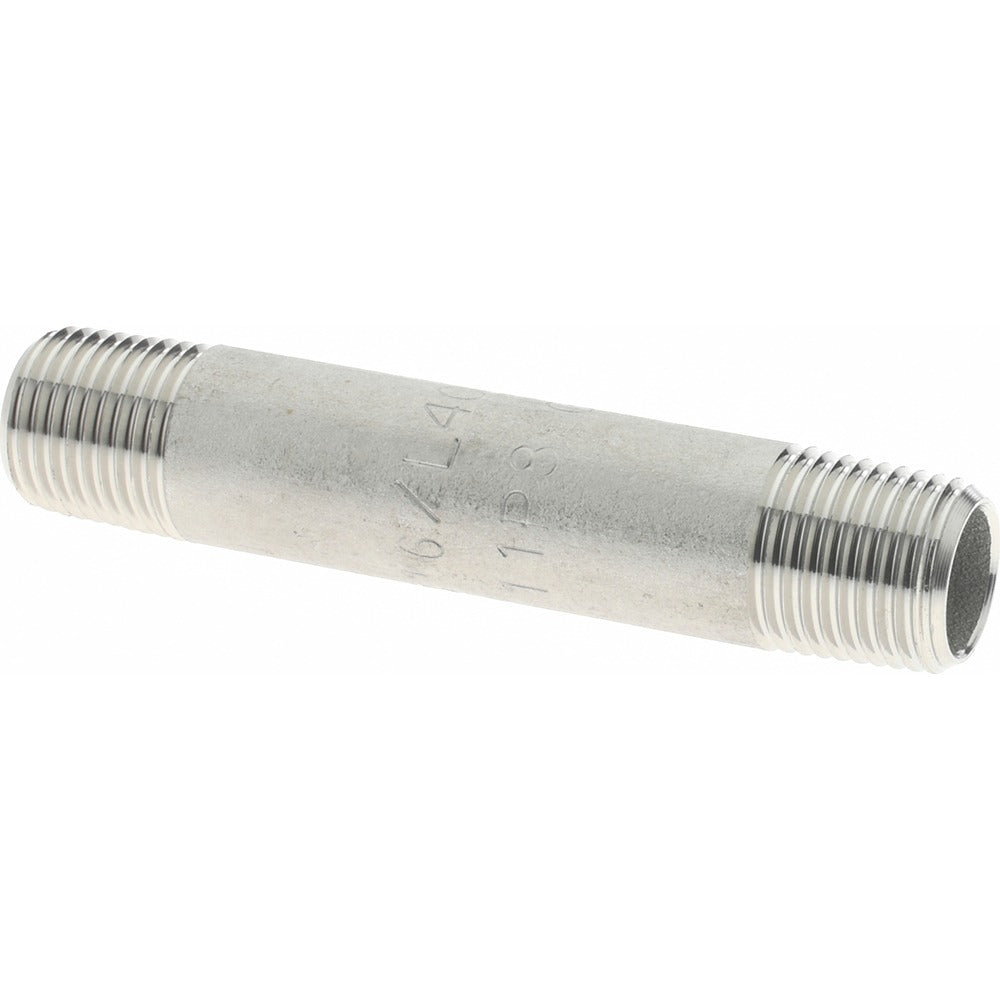

Merit Brass 6002-200 Ss Pipe Nipple 1/8 in Sch 40 316 316L

Product Description

The MERIT BRASS 6002-200 is a stainless steel pipe nipple designed for threaded piping systems where corrosion resistance and pressure integrity are required. Manufactured from Grade 316 and 316L stainless steel using a welded construction, this nipple meets Schedule 40 wall thickness. The 1/8-inch pipe size makes it a standard fitting for low-flow instrumentation lines, chemical feed systems, and plumbing tie-ins where compact threaded connections are needed. At 0.036 pounds, it is a lightweight component typically installed by licensed plumbers or pipefitters working on commercial or industrial systems.

This nipple is suited for applications involving corrosive media, marine environments, or high-purity fluid handling where 316 or 316L stainless is specified. The 316L designation indicates a low-carbon variant appropriate for welded assemblies where sensitization must be avoided. Typical install scenarios include process piping, chemical distribution lines, and HVAC condensate or refrigerant piping that transitions to threaded fittings at instrumentation ports or gauge connections.

Key Features

• Grade 316 and 316L stainless steel construction for enhanced corrosion resistance
• Welded manufacturing process with Schedule 40 wall thickness
• 1/8-inch pipe size with matching 1/8-inch thread size for standard NPT connections
• Low-carbon 316L grade suitable for welded assemblies where heat sensitization is a concern
• Lightweight at 0.036 pounds for use in tight or instrumentation-grade installations

Compatibility

Designed as an OEM-style replacement or standard-service fitting for 1/8-inch Schedule 40 threaded stainless steel piping systems where Grade 316 or 316L material is specified.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable IPC or ASME B31 piping codes. Shut off system pressure and isolate the line before removing or installing threaded nipples. Apply an appropriate thread sealant or PTFE tape rated for the media and pressure range. Do not overtighten stainless threaded fittings, as galling can occur; use proper hand tools and torque appropriate to the joint design.
