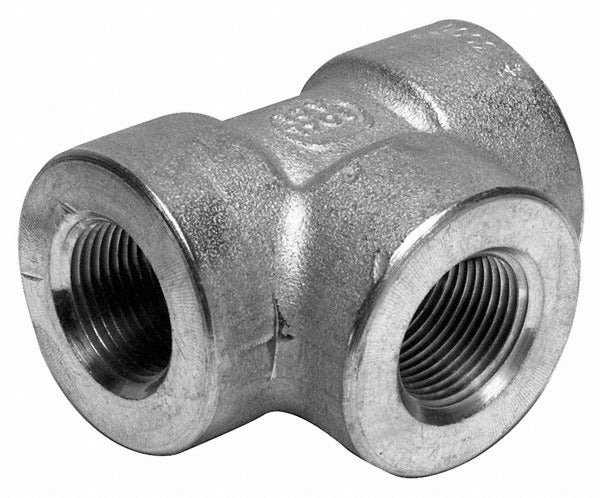

Merit Brass 3606D-02 Pipe Tee 1/8 in 3000 Psi 316 Ss

Product Description

The MERIT BRASS 3606D-02 is a 1/8 inch stainless steel pipe tee rated for 3,000 psi service. It features a male NPT run connection and two female NPT branch and outlet connections, making it suited for splitting or combining flow in high-pressure piping systems. Constructed from 316 and 316L stainless steel, this fitting offers strong resistance to corrosion and is appropriate for use in demanding fluid and gas distribution applications. Licensed plumbers, pipefitters, and mechanical contractors typically install this fitting in process, industrial, or commercial piping assemblies where pressure integrity and corrosion resistance are critical.

This tee is intended for use in 1/8 inch NPT threaded piping systems operating at up to 3,000 psi. The MNPT x FNPT x FNPT end configuration connects to a male-threaded pipe on the run end and accepts female-threaded connections on the remaining two ports. Typical applications include compressed air distribution, hydraulic lines, chemical fluid transfer, and instrumentation piping where a corrosion-resistant alloy is specified. The 316 and 316L dual-grade material designation makes this fitting compatible with both standard and low-carbon stainless requirements.

Key Features

• 316 and 316L stainless steel construction for corrosion resistance in aggressive environments
• 3,000 psi pressure rating for high-pressure piping service
• MNPT x FNPT x FNPT end connections for threaded assembly without additional adapters
• 1/8 inch fitting size for compact or instrument-scale piping runs
• Dual-grade 316 and 316L material meets both standard and low-carbon stainless specifications

Compatibility

Designed as an OEM-style threaded pipe fitting for 1/8 inch NPT piping systems requiring 316 or 316L stainless steel construction at pressures up to 3,000 psi.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable mechanical and plumbing codes such as the IPC or ASME B31.3 process piping standard. Depressurize and isolate the piping system completely before removing or installing any threaded fittings. Apply an appropriate thread sealant rated for the service medium and pressure before making up NPT connections. Do not over-torque threaded stainless steel fittings, as galling can occur on stainless threads.
