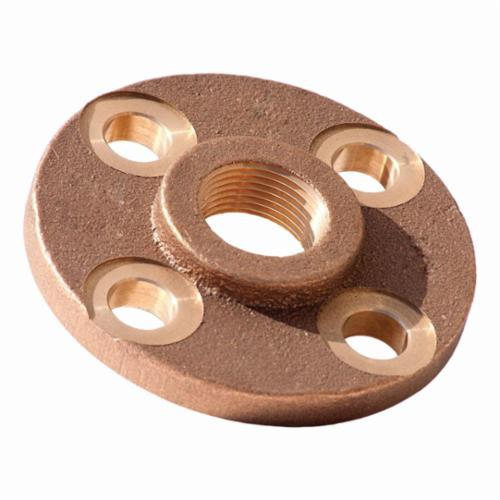

Merit Brass 237-32 Companion Flange 2 in

Product Description

The Merit Brass 237-32 is a 2-inch nominal companion flange with a thread connection. It withstands 300 psi pressure and is in the 300 lb pressure class. Constructed from brass, it has a schedule rating of SCH 80/XH and can handle temperatures up to 400 deg F.

• 300 psi working steam pressure at 400 deg F and 500 psi non-shock cold water, oil or gas (W.O.G) at -20 to 150 deg F

Product Highlights

This domestic companion flange is made of brass and is suitable for various applications requiring a secure and reliable connection.

Product Information

Standard Information

• Brand: MERIT BRASS
• Manufacturer Part Number: 237-32
• Country of Origin: Domestic

Technical Specifications

• Bolt Circle Diameter: 4-3/4 in
• Bolt Hole Size: 3/4 in
• Connection Type: Thread
• Domestic/Import: Domestic
• Length Through Hub: 1 in
• Material: Brass
• Nominal Size: 2 in
• Number of Bolt Holes: 4
• Outside Diameter: 6-1/2 in
• Pressure Class: 300 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 80/XH
• Temperature Rating: 400 deg F
• Thickness: 3/4 in
