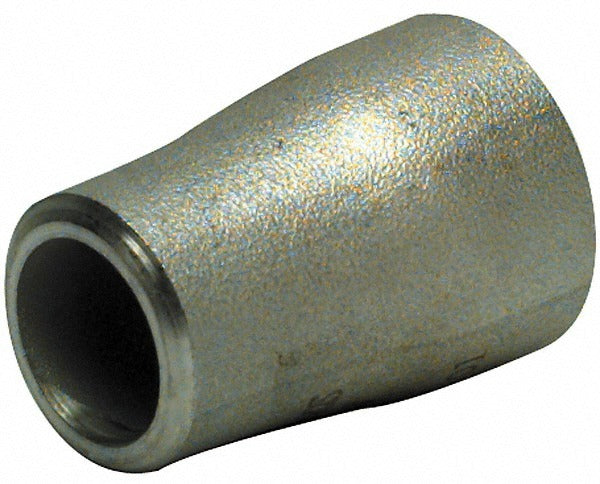

Merit Brass 01412-3208 Concentric Reducer 2x1/2 in 304L Ss

Product Description

The MERIT BRASS 01412-3208 is a Schedule 10 concentric reducer fitting designed for butt weld installation in stainless steel piping systems. Manufactured from 304L stainless steel, this fitting transitions a 2-inch pipe down to a 1/2-inch pipe along a centered, concentric axis — keeping flow aligned with the pipe centerline. The 304L material grade offers low carbon content, which reduces the risk of intergranular corrosion after welding. Weighing 0.595 pounds, it is sized for light-wall Schedule 10 applications. Plumbers, pipefitters, and process piping technicians working in sanitary, industrial, or commercial mechanical systems typically install this fitting.

This concentric reducer is suited for Schedule 10 stainless steel piping systems where a 2-inch to 1/2-inch transition is required. Common applications include commercial plumbing, food service piping, light industrial process lines, and HVAC hydronic systems where corrosion resistance and weld integrity are priorities. Both ends use a butt weld connection, making this fitting appropriate for fully welded, leak-free assemblies in demanding service environments.

Key Features

• 304L stainless steel construction provides corrosion resistance and low post-weld carbide precipitation
• Concentric design maintains pipe centerline alignment through the reduction
• Butt weld on both ends for a strong, fully fused joint
• Schedule 10 wall thickness for light-duty commercial and industrial piping
• 2-inch inlet to 1/2-inch outlet reduction in a single fitting

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Schedule 10 stainless steel butt weld piping systems requiring a 2-inch to 1/2-inch concentric reduction.

Installation Notes

Installation requires a certified welder or qualified pipefitter using equipment appropriate for 304L stainless steel butt welding. Isolate and depressurize the piping system completely before cutting into the line. Follow applicable codes including ASME B31.3 for process piping or ASME B31.9 for building services piping as appropriate to the application. Purge the pipe interior with inert gas during welding to prevent oxidation on the weld root when required by the system specification.
