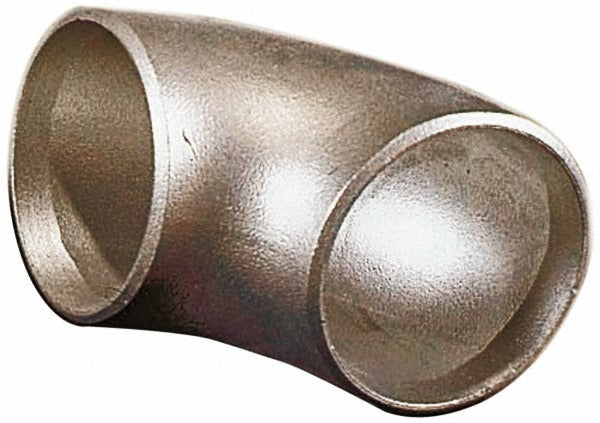

Merit Brass 01408-16 90 Short Radius Elbow 1 in 304L Ss

Product Description

The MERIT BRASS 01408-16 is a 90-degree short radius elbow fitting designed for use in piping systems that require a compact directional change. Constructed from 304L stainless steel, this Schedule 10 fitting connects via butt weld on both ends and is threaded, making it suitable for a range of industrial and commercial piping applications. At 1 inch in size, it offers a tight-radius bend where space constraints prevent the use of long-radius fittings. The low-carbon 304L grade provides good corrosion resistance in moderate service environments and is well suited for welded assemblies where post-weld corrosion resistance is a priority.

This fitting is used in commercial and light industrial piping systems where a 90-degree directional change is needed in a confined space. Short radius elbows are commonly installed in mechanical rooms, process piping, and utility lines where routing flexibility is limited. The butt weld end connection makes it appropriate for permanent, high-integrity joints in stainless steel piping systems. Licensed pipefitters and plumbers working on Schedule 10 stainless systems will find this fitting compatible with standard butt weld installation procedures.

Key Features

• 90-degree short radius elbow for compact directional changes in tight spaces
• 304L stainless steel construction for corrosion resistance and weldability
• Schedule 10 wall thickness for lightweight stainless piping systems
• Butt weld end connections on both ends for permanent, leak-resistant joints
• Threaded configuration compatible with standard pipe threading practices
• 1 inch fitting size for common commercial and industrial pipe sizes

Compatibility

Designed as an OEM-style replacement or new installation fitting for Schedule 10 stainless steel butt weld piping systems using 1 inch pipe.

Installation Notes

Installation should be performed by a licensed pipefitter or plumber following applicable codes including ASME B31.3 for process piping or ASME B31.1 for power piping where applicable. Shut down and depressurize the system fully before cutting into any existing piping. Butt weld connections require proper fit-up, purging, and qualified weld procedures to maintain joint integrity and corrosion resistance in 304L stainless assemblies. Do not use abrasive tools or carbon steel equipment that may contaminate the stainless steel surface.
