Product Description

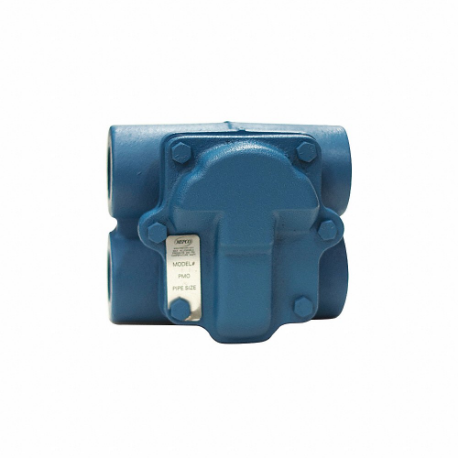

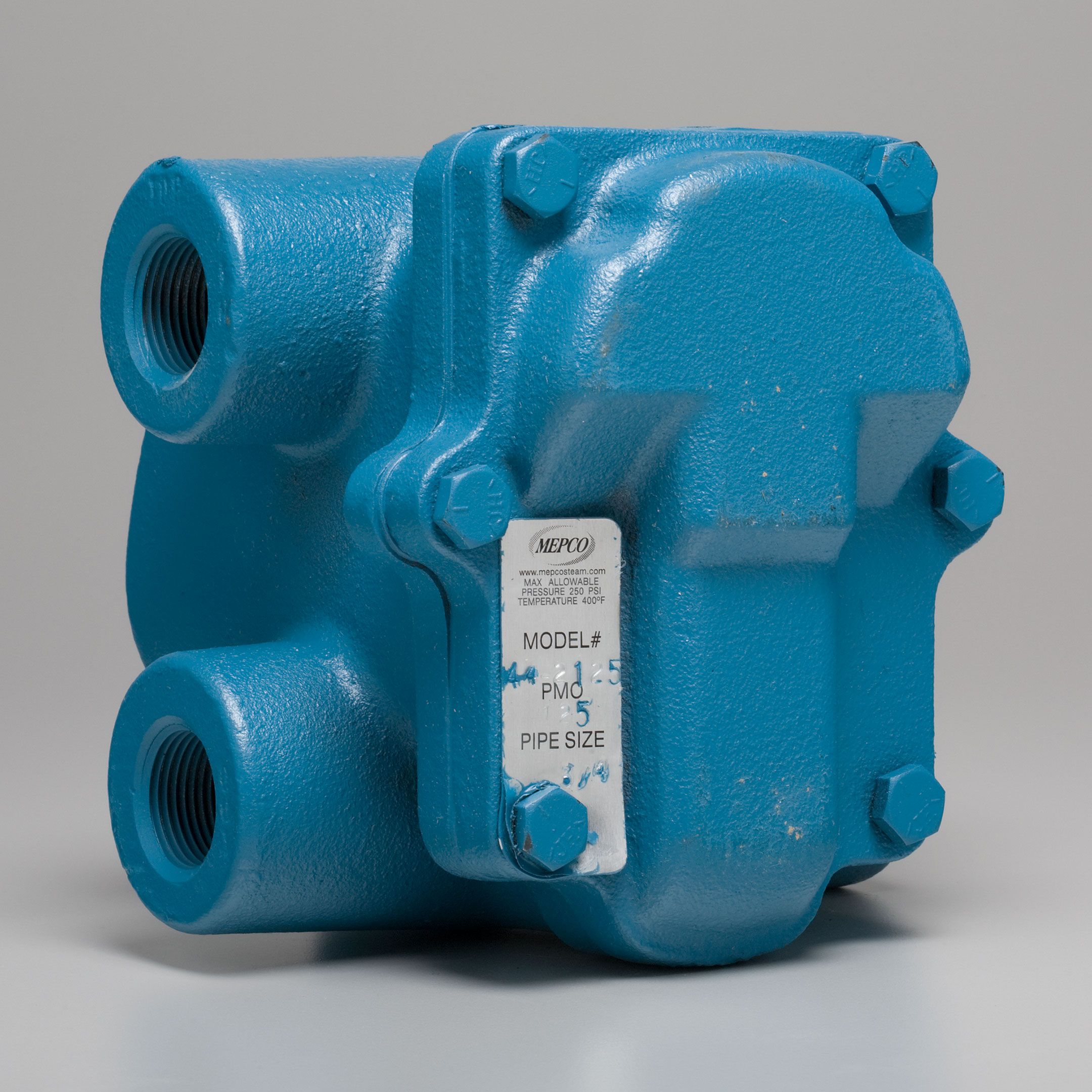

The Mepco 44-2125 is a float and thermostatic steam trap with a three-quarter inch connection. This model features an H-pattern configuration that allows steam entry from either side while enabling condensate discharge from the same or opposite side. The design supports continuous drainage, making it suitable for low, medium, and high-pressure steam mains.
- Constructed with a durable cast iron body and stainless steel internal components.
- Handles a maximum operating pressure of 125 psi.
- Configured for a condensate capacity of 1,650 pounds per hour.
Product Highlights
This steam trap is designed for efficiency and reliability in steam lines.
Product Information
Standard Information
-
Brand: Mepco
-
MPN: 44-2125
Technical Specifications
-
Series: 44 Series
-
Steam Trap Type: Float & Thermostatic
-
Body Material: Cast Iron
-
Connection Size: 3/4 inch
-
Mounting Type: H-Pattern, Same Side
-
Maximum Pressure: 125 psi
-
Weight: 12.00 pounds
-
Application: Steam Lines
-
Condensate Capacity: 1650 lbs./hr.
-
Configuration: H Pattern
-
Disc Material: Stainless Steel
-
Distance Between Inlet And Outlet Port: 3 3/8 inches
-
Downstream Pressure Range: 0 psi to 120 psi
-
Overall Length: 4 7/8 inches
-
Float Material: Stainless Steel
-
Inlet Connection Size: 3/4
-
Outlet Connection Size: 3/4
-
Installation Orientation: Horizontal
-
Lever Assembly Material: Stainless Steel
-
Maximum Temperature: 345°F
-
Inlet Connection Type: NPT
-
Outlet Connection Type: NPT
-
Orifice Diameter: 1/8 inches
-
Overall Depth: 31 15/16 inches
-
Overall Width: 5 3/4 inches
-
Port Connection Gender: Female
-
Port Types Included: Inlet, Outlet
-
Pressure Air Vent: Releases Air And Non-Condensable Gases
-
Trap Position: Horizontal
-
Valve Pin Material: Stainless Steel
-
Minimum Temperature: 35°F
-
Gasket Material: Non-Asbestos Fiber
-
Air Vent: Included
-
Maximum Capacity At Maximum Pressure Load: 1650 lbs./hr. at 125 psi
