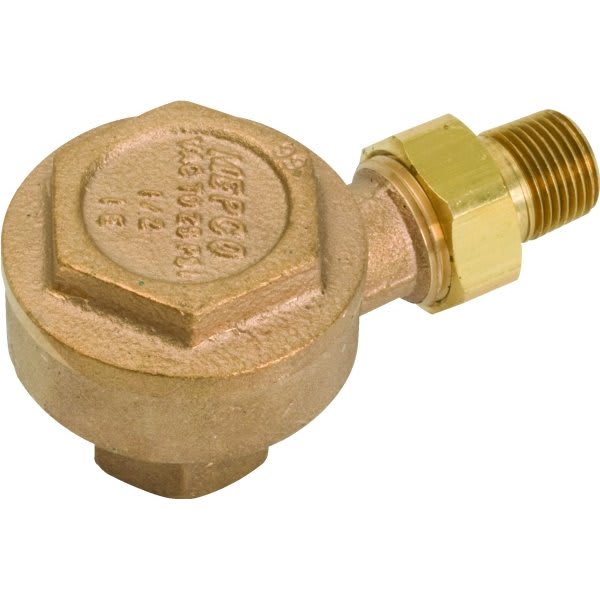

MEPCO 1ESTR-12 Steam Trap 1/2 Angle Pattern

Product Description

The MEPCO 1ESTR-12 steam trap features a one-half inch connection and an angle pattern design. This unit is made from cast brass and is engineered to efficiently remove condensate and vent air from steam systems. It works effectively under pressure conditions ranging from 25 Hg vacuum to 25 PSI. The steam trap is essential for drainage from radiators or heating elements, and its design reduces the risk of blockages during operation.

• Operates with pressures from 25 Hg vacuum to 25 PSI
• Drains water and vents air from radiators or heating elements
• Constructed to minimize clogging

Product Highlights

This steam trap optimizes the functionality of steam heating systems and enhances efficiency in condensate removal.

Product Information

Standard Information

• Brand: MEPCO
• MPN: 1ESTR-12

Technical Specifications

• Body Material: Cast Brass
• Package Quantity: 1
• Dimensions: Height 2.250 inches, Length 4.130 inches, Width 2.000 inches
• Weight: 1.200 lbs
