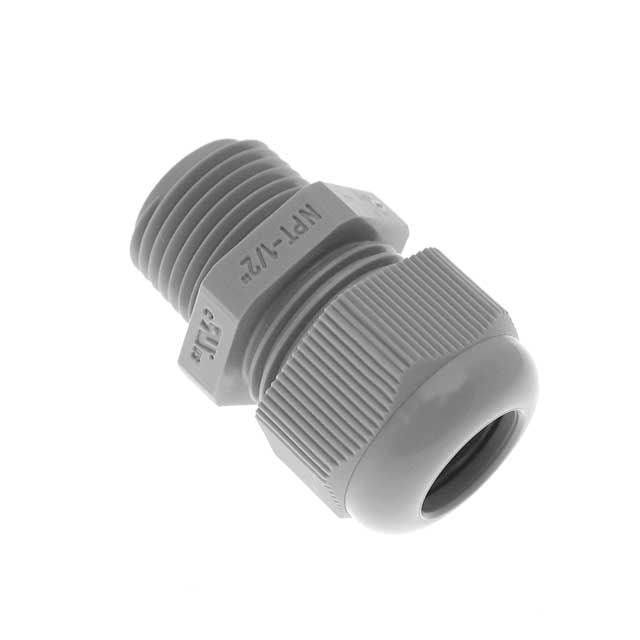

Mencom PCG-1/2Y Cable entry 1/2 NPT (Straight)

Product Description

Mencom PCG-1/2Y is a polyamide bushing-grip cable entry that provides strain relief and a watertight seal for a single round cable. It installs in a 1/2 NPT hub and clamps cable diameters from 0.236 to 0.472 inches. The part is rated IP68 to 5 bar (comparable to NEMA 6P) and carries UL approval, suitable for routing and sealing cables in enclosures and industrial equipment.

• Watertight seal rated IP68 to 5 bar (comparable to NEMA 6P) and provides strain relief for round cables
• Fits 1/2 NPT hub; clamping range 0.236–0.472 in (0.24–0.47 in) for one cable
• Polyamide non-metallic bushing-grip construction; UL approved; O-ring supplied on M32 and larger

Product Highlights

Polyamide bushing-grip cable gland; 1/2 NPT hub; 0.236–0.472 in clamping range; IP68 (5 Bar); UL listed.

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: PCG-1/2Y

Technical Specifications

• Manufacturer: Mencom
• Manufacturer Part Number: PCG-1/2Y
• Series: PCG
• Description: Plastic cable gland 1/2 NPT, clamps 0.236-0.472 in
• Hub Size: 1/2 NPT
• Number of Cables: 1
• Cable Style: Round
• Angle: Straight
• Split Frame: No
• Cable Diameter Range: 0.236-0.472 in (0.24-0.47 in)
• Type: Bushing grip
• Material: Polyamide (non-metallic)
• Protection Rating: IP68 (5 Bar)
• Approvals: UL
• O-ring: Supplied on M32 and larger; not required for sizes smaller than M32
• Net Weight: 0.025 lbs
• Gross Weight: 0.025 lbs
• Comments: Gray
