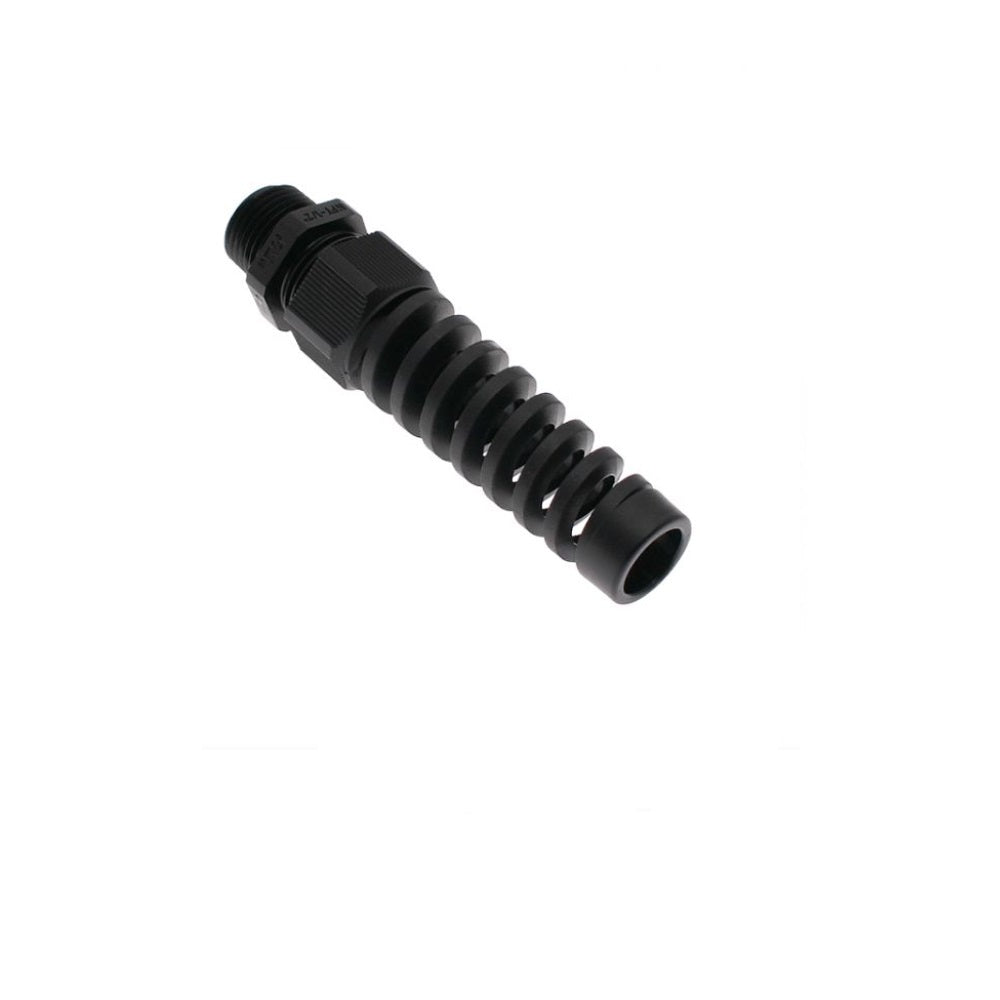

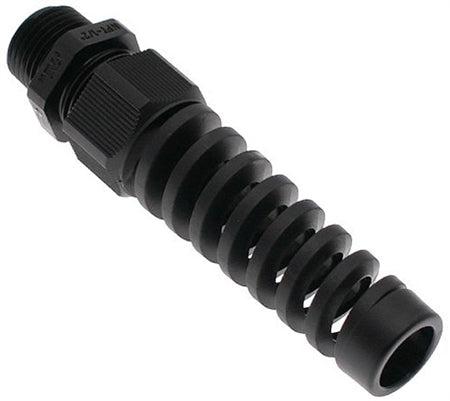

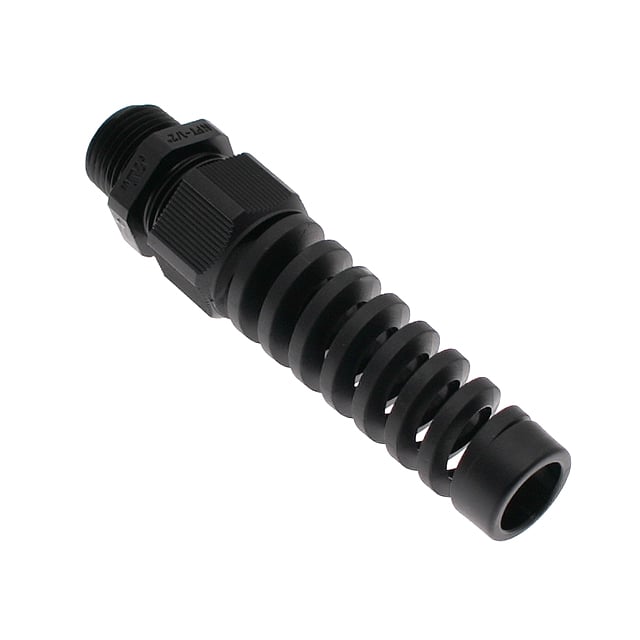

Mencom PCG-1/2Y-BS Plastic Flex Cable Gland 0.236-0.472 in (1/2 NPT)

Product Description

The Mencom PCG-1/2Y-BS is a plastic flex cable gland with integrated strain relief and a 1/2 in NPT male thread. It seals cable entries and provides IP68 protection for cables 0.236–0.472 in (6–12 mm) diameter, using a neoprene grommet and polyamide body. The part is UL and CUL recognized and is suitable for liquid-tight cord-grip applications and compatibility with ILME rectangular hoods.

• Integrated flex strain relief with 1/2 in NPT male mounting thread
• Sealing neoprene grommet in polyamide/plastic body; cable range 0.236–0.472 in (6–12 mm)
• IP68 ingress protection; temperature range -20°C to 100°C; UL and CUL recognized

Product Highlights

1/2 in NPT plastic flex cable gland with neoprene grommet, IP68 protection, 6–12 mm cable range

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: PCG-1/2Y-BS

Technical Specifications

• Brand: MENCOM
• Manufacturer Part Number: PCG-1/2Y-BS
• Product Type: Cable gland with flex strain relief
• Material: Polyamide (plastic) body
• Grommet Material: Neoprene
• Mounting Thread: 1/2 in NPT (male)
• Thread Gender: Male
• Cable Diameter Range: 0.236-0.472 in (6-12 mm)
• Ingress Protection: IP68
• Temperature Range: -20°C to 100°C
• Approvals: UL recognized; CUL recognized
• Weight: 0.023 lb
• Nut Supplied: No
• Component Type: Flex strain relief
• Compatible With: ILME rectangular hoods
