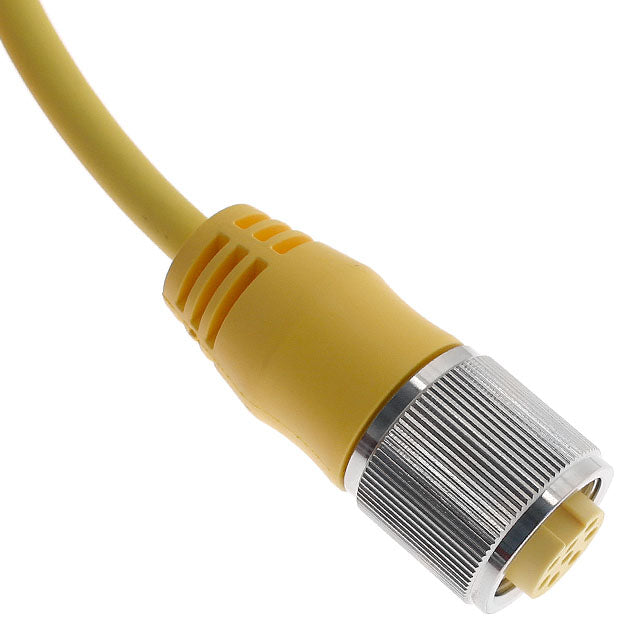

Mencom MIN-7FPX-6 MIN Size II Cable 5 A (6 ft / 7 Pole / Female Straight)

Product Description

The Mencom MIN-7FPX-6 is a MIN Size II 7-position female molded cordset rated 5 A for plug-and-play connectivity in applications requiring 6, 7, or 8 contacts. The cordset uses 18 AWG conductors, a PVC jacket, nickel-plated brass coupling nut, and provides IP69 ingress protection. It is 6 ft (2 m) long and has a 300 V voltage rating for industrial sensor, actuator, and control connections.

• MIN Size II 7-position female connector, straight orientation, mating thread 1-16UN2
• 18 AWG conductors, PVC jacket, cable outer diameter 0.33 in, ground wire included
• Rated 300 V and 5 A, nickel-plated brass coupling nut, IP69 ingress protection

Product Highlights

MIN Size II 7-pin female cordset, 6 ft (2 m), 18 AWG, 300 V, 5 A, PVC jacket, IP69

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: MIN-7FPX-6
• Country of Origin: United States

Technical Specifications

• Brand: MENCOM
• Manufacturer Part Number: MIN-7FPX-6
• Product Type: Cordset / Cable
• Series: MIN Size II (1")
• Connector Type: MIN 7-position female plug
• Pin Count: 7
• Gender: Female
• Orientation: Straight
• Mating Thread: 1-16UN2
• Coupling Thread Gender: Female
• Coupling Nut Material: Nickel plated brass
• Wire Gauge: 18 AWG
• Voltage Rating: 300 V
• Amperage Rating: 5 A
• Cable Length (ft): 6
• Cable Length (m): 2
• Cable Outer Diameter: 0.33 in
• Cable Jacket Material: PVC
• IP Rating: IP69
• Ground Wire: Yes
• Weight: 0.7041 lb
• UNSPSC Code: 26120000
• Manufacturer product status: Commercialized
