Mencom E45V3-8MP-RJ45-2M Ethernet Cordset (2M)

Product Description

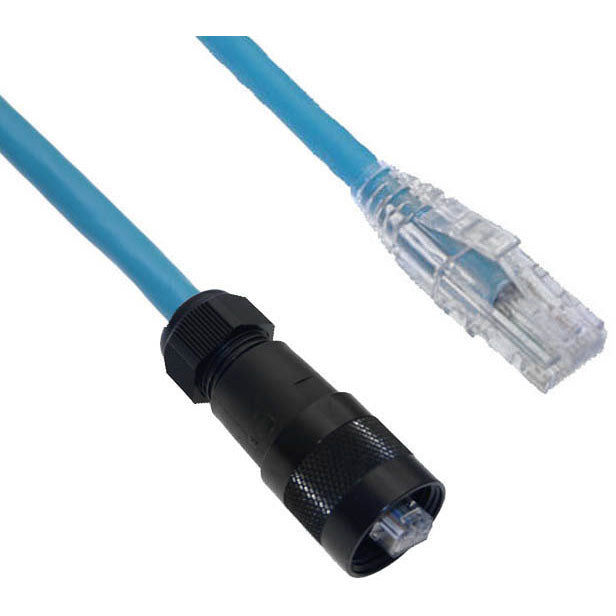

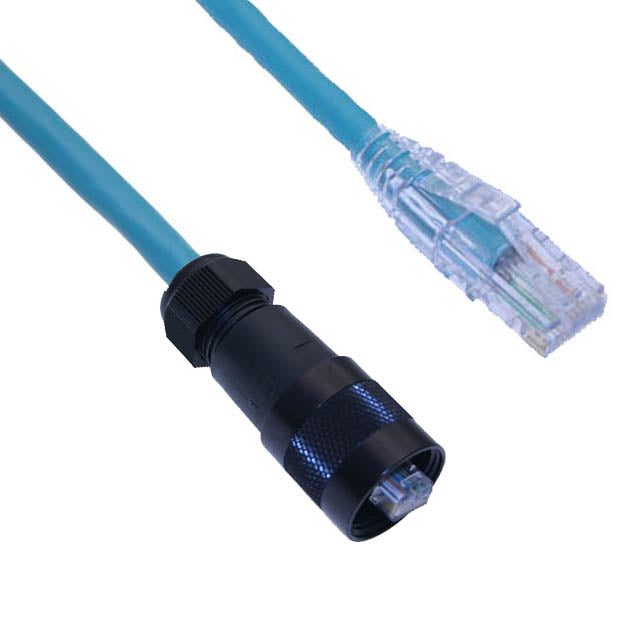

The Mencom E45V3-8MP-RJ45-2M is an industrial Cat5e Ethernet cordset with an E45V3 male straight connector to an RJ45 male straight plug and a 2 m PVC-jacketed cable. It uses 24 AWG conductors, has a 0.22 in cable outer diameter, and provides IP67 ingress protection when mated to a Mencom receptacle. The cordset meets UL508A, UL50, and UL50E standards and features a clear anodized aluminum shell.

• Industrial Cat5e male-to-male cordset, E45V3 male straight to RJ45 male straight, 2 m length
• 24 AWG cable, PVC jacket, 0.22 in outer diameter, clear anodized aluminum shell
• IP67 ingress protection when mated to Mencom receptacle; meets UL508A, UL50, UL50E

Product Highlights

Industrial Cat5e male-to-male cordset, E45V3 to RJ45, 2 m, 24 AWG, IP67 when mated

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: E45V3-8MP-RJ45-2M

Technical Specifications

• Brand: MENCOM
• Manufacturer Part Number: E45V3-8MP-RJ45-2M
• Product Type: Cables
• Component Type: Cordset
• Series: Ethernet (E45V3)
• Pin Count: 8
• Gender: Male/Male
• Orientation Head 1: Male straight
• Orientation Head 2: Male straight
• Mating Type Head 1: E45V3
• Mating Type Head 2: RJ45 plug
• Wire Gauge: 24 AWG
• Voltage Rating: 42 V
• Amperage Rating: 1.5 A
• Cable Length: 2 m (78.74 in)
• Cable O.D.: 0.22 in
• Cable Jacket Material: PVC
• Jacket Color: Teal
• Ethernet Standard: CAT5e
• Shielding: No
• IP Rating: IP67 (when mated to Mencom receptacle)
• Shell / Coupling Nut Material: Clear anodized aluminum
• Certifications: UL508A; UL50; UL50E
• Weight: 0.225 lb
