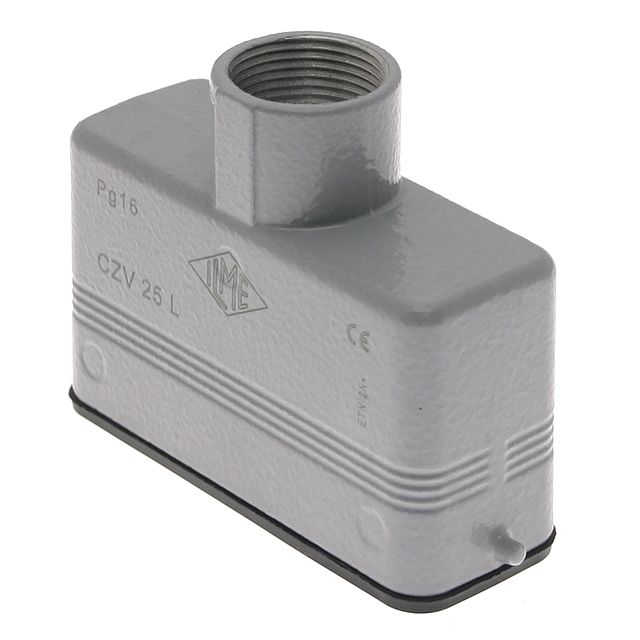

Mencom CZV-25L Standard Rectangular Hood (Size 66.16, 2 Pegs, Top PG16)

Product Description

Mencom CZV-25L is a standard rectangular hood for ILME CZ series rectangular connectors, sized 66.16 and intended for cable mounting with a top PG16 cable entry. The aluminum die-cast hood features a patented stainless steel locking system that maintains IP65/IP66 protection through repeated mating cycles and operates from -40 to +125 C. It includes two pegs and a male insert dimension of 66.16.

• Aluminum die-cast construction with patented stainless steel locking system for consistent clamping force
• Top PG16 cable entry, cable-mounted hood with two pegs and male insert (66.16)
• IP66 rated enclosure, single entry, operating temperature -40 to +125 C

Product Highlights

Top-entry metal hood for ILME CZ series, size 66.16, IP66 rated, cable-mounted with PG16 thread and two pegs

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: CZV-25L
• Country of Origin: USA

Technical Specifications

• Brand: Mencom
• Manufacturer Part Number: CZV-25L
• Product Type: Rectangular connector hood
• Series: ILME CZ
• Component Type: Hood
• Housing/Insert Type: Standard
• Enclosure Dimension (Size): 66.16 (size code)
• Insert Dimension: 66.16 (size code)
• Number of Positions: 25
• Pegs: 2
• Hood Entry: Top
• Hood Thread: PG16
• Number of Entries: 1
• Mounting Style: Cable
• Gender: Male
• Enclosure Material: Aluminum die-cast (metal)
• Gasket/O-Ring: Not explicitly stated (required for IP66 - likely present)
• Cover: No
• IP Rating: IP66 (stated)
• Operating Temperature: -40 to +125 C
• Weight: 0.204 lbs
• Locking Mechanism: Patented stainless steel locking system
