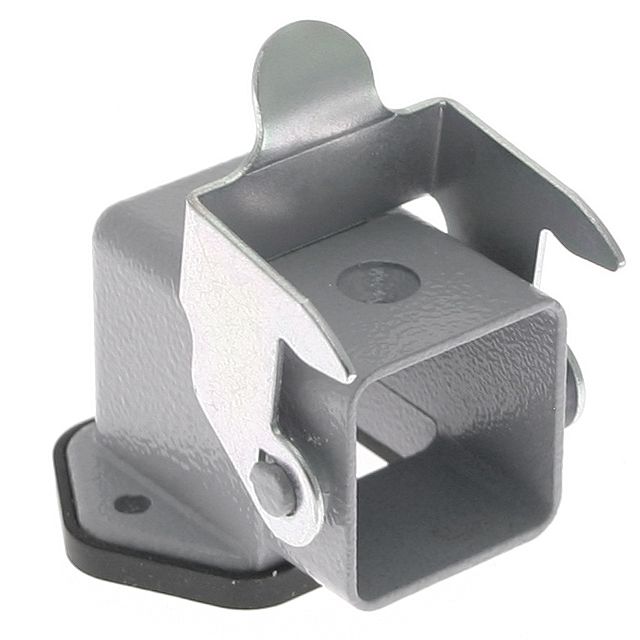

Mencom CKA-03IA Rectangular Base Angled Bulkhead Mount 21.21

Product Description

The Mencom CKA-03IA is a rectangular connector base designed for angled bulkhead mounting. It features a metal enclosure with gasket and a single-latch lever, with insert and enclosure dimensions of 21.21 and an IP44 ingress protection rating. Rated for operation from -40 °C to +125 °C, the male base is part of the ILME CK series and supports industrial electrical connectivity and enclosure applications; hoods accept PG, Metric, or NPT openings.

• Single-latch rectangular base configured for angled bulkhead mounting; male component
• Metal enclosure with gasket/O-ring and IP44 ingress protection
• Operating temperature -40 °C to +125 °C; insert and enclosure dimension 21.21

Product Highlights

Standard ILME CK series rectangular base; angled bulkhead mount; metal housing with gasket; IP44; size 21.21

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: CKA-03IA

Technical Specifications

• Part Number: CKA-03IA
• Manufacturer: Mencom
• Product Type: Rectangular Base / Rectangular Connectors
• Component Type: Base
• ILME Series: CK
• Mounting Style: Angled Bulkhead Mount
• Latch Type: Single Latch
• Gender: Male
• Enclosure Material: Metal
• Gasket / O-Ring: Yes
• IP Rating: IP44
• Insert Dimension: 21.21
• Enclosure Dimension: 21.21
• Temperature Range: -40 to +125 °C
• Housing / Insert Type: Standard
• Cover: No
• Cable Entry Options: PG, Metric, NPT
