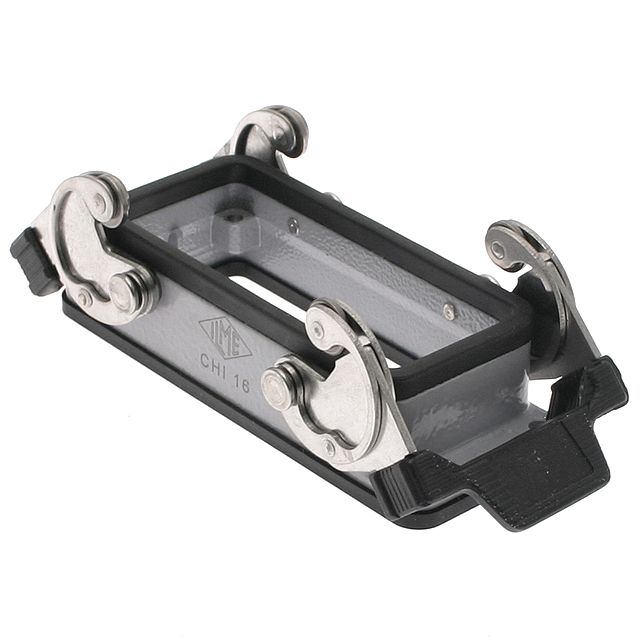

Mencom CHI-16 Standard Rectangular Base Bulkhead Mount Double Latch (Size 77.27)

Product Description

Mencom CHI-16 is a standard rectangular base for ILME CN series connectors intended for bulkhead mounting. The component is a metal aluminum die-cast enclosure with a patented stainless steel locking system and a double latch design. It is supplied as the base only (no cover) and is rated for wide temperature operation from -40 to +125 °C with IP65 protection maintained after mating cycles.

• Aluminum die-cast enclosure with patented stainless steel locking system and double latch
• IP65 protection maintained after 500 mating cycles; operating temperature -40 to +125 °C
• Bulkhead-mount base for ILME CN series connectors; supplied as base component only (no cover)

Product Highlights

Aluminum die-cast bulkhead base for ILME CN series; double latch; IP65; -40 to +125 °C; size 77.27

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: CHI-16

Technical Specifications

• Brand: MENCOM
• Manufacturer Part Number: CHI-16
• Product Type: Rectangular Connectors (base)
• Series: CN
• Component Type: Base (bulkhead mount)
• Housing/Insert Type: Standard
• Lever Type: Double Latch
• Size: 77.27 (size code)
• Gasket / O-Ring: Yes
• Mounting Style: Bulkhead Mount
• Cover: No
• Upper AWG: N/A
• Lower AWG: N/A
• Enclosure Material: Aluminum die-cast
• Operating Temperature (°C): -40 to +125
• IP Rating: IP65
• Weight (lbs): 0.400000
• Locking System: Patented stainless steel locking system
• Mating Cycles (IP protection maintained): 500
