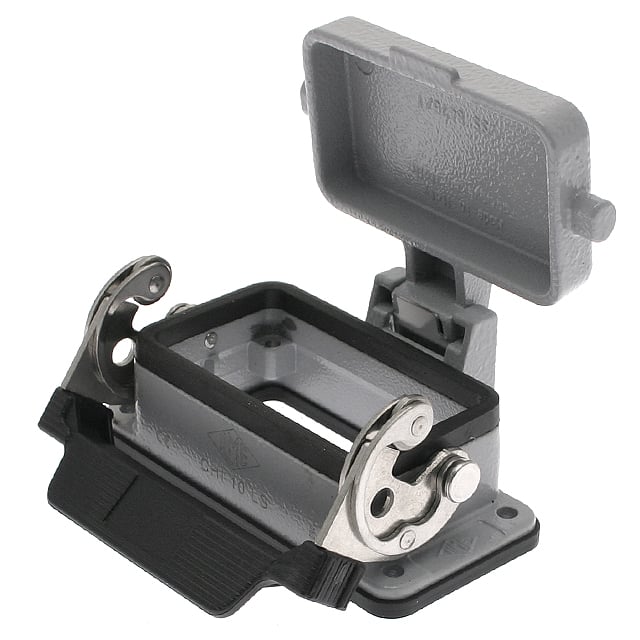

Mencom CHI-10LS Standard Rectangular Base Bulkhead Mount (Size 57.27) Single Latch and Cover

Product Description

The Mencom CHI-10LS is a bulkhead-mount rectangular base (panel-mount connector housing) sized 57.27 with a single latch and cover. It features an aluminum die-cast enclosure and a patented stainless steel locking system that preserves IP65 ingress protection through repeated mating cycles. The unit includes a gasket/O-ring and is specified for operating temperatures from -40 C to +125 C, suitable for industrial panel and enclosure installations.

• Aluminum die-cast bulkhead-mount base with single latch and included cover and gasket/O-ring
• Patented stainless steel locking system maintaining IP65 protection after repeated mating cycles
• Operating temperature range -40 C to +125 C; enclosure/insert dimension 57.27

Product Highlights

Bulkhead-mount rectangular base (size 57.27) with single latch, cover, gasket, IP65 rating, and -40 C to +125 C temperature range

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: CHI-10LS
• Country of Origin: US

Technical Specifications

• Brand: MENCOM
• Manufacturer Part Number: CHI-10LS
• Product Type: Rectangular Connectors / Base
• Component Type: Base with Cover
• Mounting Style: Bulkhead Mount
• Lever Type: Single Latch
• Enclosure Material: Aluminum die-cast
• Finish: Epoxy coating
• Enclosure Dimension: 57.27 mm (2.254 in) - likely panel/enclosure size
• Insert Dimension: 57.27 mm (2.254 in) - likely insert size
• Gasket/O-Ring: Yes
• Cover Included: Yes
• IP Rating: IP65
• Temperature Range: -40 C to +125 C
• Locking System: Patented stainless steel locking system
• Gender: Male
• RoHS Compliance: Yes
• Country of Origin: US
• ECCN: EAR99
• Weight (lbs): 0.383
