Mencom CDM-40 Male Rectangular Insert 10 A (77.27)

Product Description

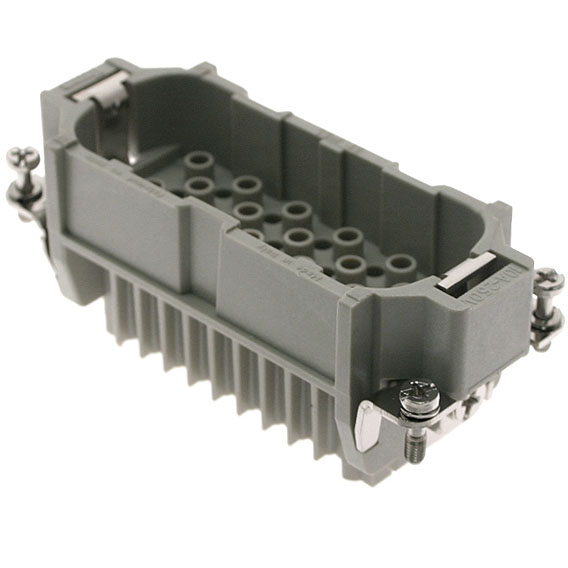

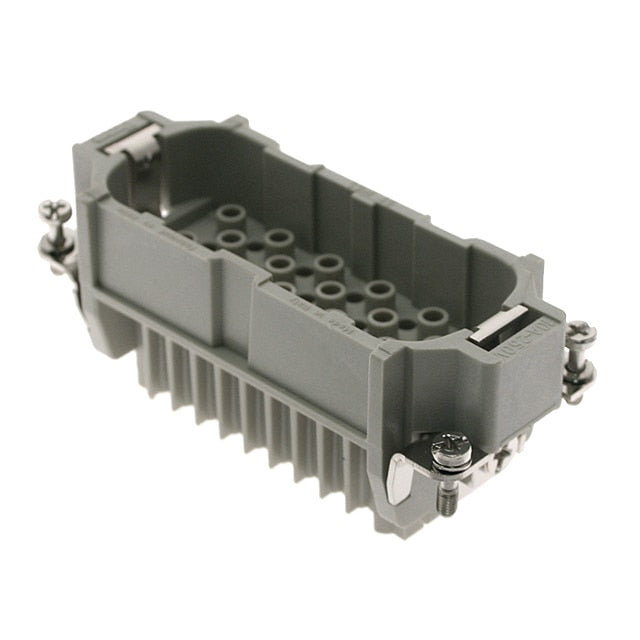

The Mencom CDM-40 is a 40-pin male rectangular insert in the CD series, rated 10 A and 600 V with crimp terminations. The standard insert measures size 77.27, accepts 14–26 AWG conductors, and is intended for industrial electrical connections when combined with mating hoods and bases. It operates from -40°C to +125°C and is supplied new and factory-sealed.

• 40-pin male configuration, size 77.27, CD series insert
• Rated 10 A and 600 V with crimp termination for 14–26 AWG
• Operating temperature range -40°C to +125°C; designed for industrial connections

Product Highlights

Standard ILME CD series male rectangular insert; 40 pins; crimp termination; 10 A, 600 V; 14–26 AWG.

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: CDM-40

Technical Specifications

• Brand: Mencom
• Manufacturer Part Number: CDM-40
• Manufacturer: Mencom
• Series: CD
• Product Type: Rectangular Connectors
• Component Type: Insert
• Housing/Insert Type: Standard
• Pin Count: 40
• Current Rating: 10 A
• Voltage Rating: 600 V
• Termination: Crimp
• Insert Dimension: 77.27 (size code — not a physical length)
• Upper AWG: 14
• Lower AWG: 26
• Operating Temperature: -40 to +125 °C
• Category: Electronic Components
• Product Condition: New factory sealed
• Cover: No
• Gasket/O-Ring: No
