Mencom CDF-40 Female Rectangular Insert 10A (40 Pin)

Product Description

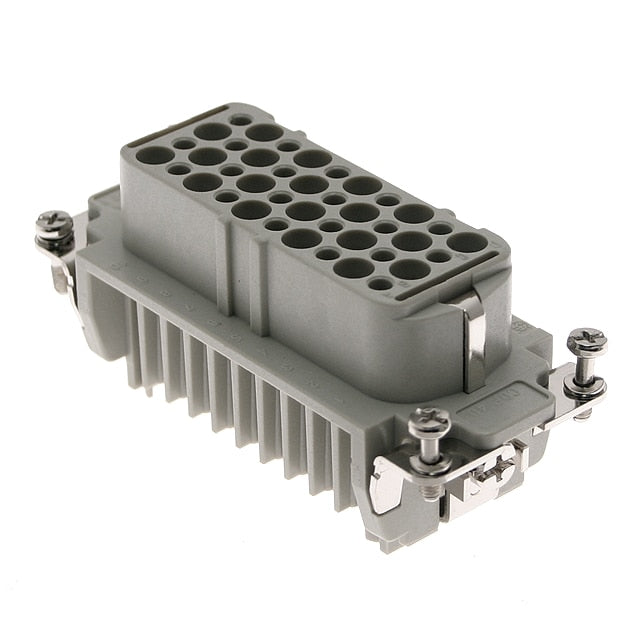

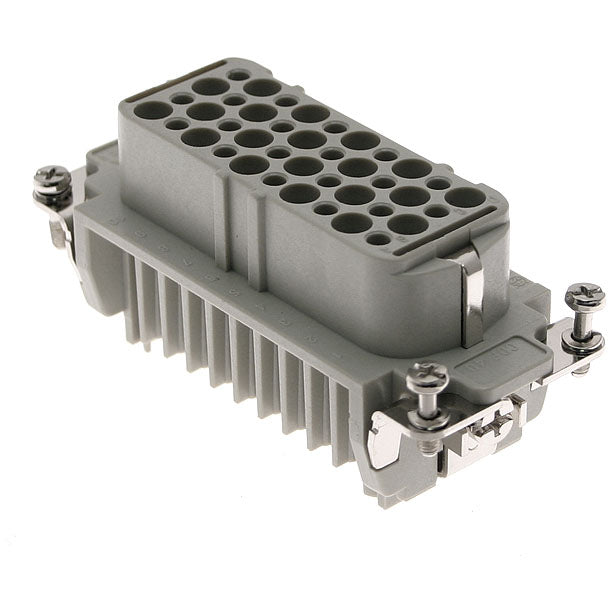

Mencom CDF-40 is a CD series 40-pin female rectangular insert designed for crimp termination in industrial connector assemblies. It is rated 10 A and 600 V, with an operating temperature range of -40 C to +125 C. The insert accepts conductors from AWG 14 to 26 and provides a standard housing/insert interface for quick-disconnect connections in automation and control systems.

• 40-pin female insert, CD series; crimp termination; fits size 77.27 housings
• Electrical ratings: 10 A current, 600 V voltage; operating temperature -40 C to +125 C
• Accepts AWG 14 to 26 conductors; standard housing type with no gasket or cover

Product Highlights

40-pin female crimp insert; 10 A / 600 V rating; -40 C to +125 C; size 77.27; AWG 14–26

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: CDF-40

Technical Specifications

• Brand: Mencom
• Manufacturer Part Number: CDF-40
• Product Type: Rectangular Connector Insert
• Series: CD
• Component Type: Insert
• Gender: Female
• Pin Count: 40
• Current Rating: 10 A
• Voltage Rating: 600 V
• Termination: Crimp
• Temperature Range: -40 to +125 C
• Accepts AWG Range: AWG 14 - AWG 26
• Housing/Insert Type: Standard
• Gasket/O-Ring: No
• Cover: No
• Weight: 0.142 lb
• Material: Self-extinguishing thermoplastic
• Dielectric Withstand: 4 kV
• Protective Earth: Yes (separate PE contact)
• Product Condition: New Factory Sealed
• Product Lifecycle: Active
